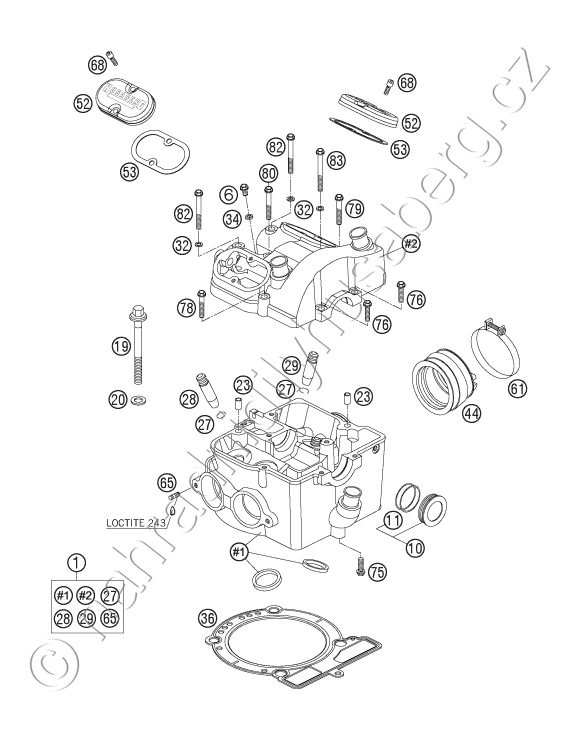

Díly pro CYLINDER HEAD
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 80036020044 CYLINDER HEAD CPL. 04 |
19 422 Kč | |
| 6 | 59036006090 VENT SCREW M6X10 CPL. |
86 Kč | |
| 10 | 80036010050 CLOSING COVER 03 |
Na dotaz | 1 |
| 11 | 0770291016 O-RING 29,10X1,60 NBR 70 |
17 Kč | |
| 19 | 58036099100 COLLAR SCREW M10X80 WS=13 10.9 |
66 Kč | |
| 20 | 59036090000 WASHER 10,8X18,8X1,5 |
23 Kč | |
| 23 | 59030023000 DOWEL SLEEVE 6X8X11.5 |
82 Kč | |
| 27 | 0993012000 CIRCLIP DIN7993-RW12 |
5 Kč | |
| 28 | 59036026101 VALVE GUIDE EXHAUST |
542 Kč | |
| 29 | 59036025101 VALVE GUIDE INTAKE |
542 Kč | |
| 32 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 34 | 58036065100 CU-SEAL RING 6 X 10 X 2 |
26 Kč | |
| 36 | 81030036000 CYLINDER HEAD GASKET 03 |
692 Kč | |
| 44 | 59036044100 INTAKE BOOT 03 |
148 Kč | |
| 44 | 80036044000 INTAKE BOOD 450/501/550 04 |
280 Kč | |
| 52 | 80036052000 VALVE COVER 03 |
793 Kč | |
| 53 | 80036053000 GASKET FOR VALVE COVER 03 |
69 Kč | |
| 61 | 59030061000 CLAMP D=56MM B=9MM M4X25 |
87 Kč | |
| 65 | 0939060163 STUD DIN939-M 6X16 |
66 Kč | |
| 68 | 0912050163 AH SCREW DIN0912-M 5X16 |
17 Kč | |
| 75 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 76 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 78 | 0025060356 HH COLLAR SCREW M6X35 TX30 |
29 Kč | |
| 79 | 0025060406 HH COLLAR SCREW M6X40 TX30 |
29 Kč | |
| 80 | 0025060456 HH COLLAR SCREW M6X45 TX30 |
29 Kč | |
| 82 | 0015060556 HH COLLAR SCR. M6X55 WS=8 10.9 |
50 Kč | |
| 83 | 0025060606 HH COLLAR SCREW M6X60 TX30 |
29 Kč |
