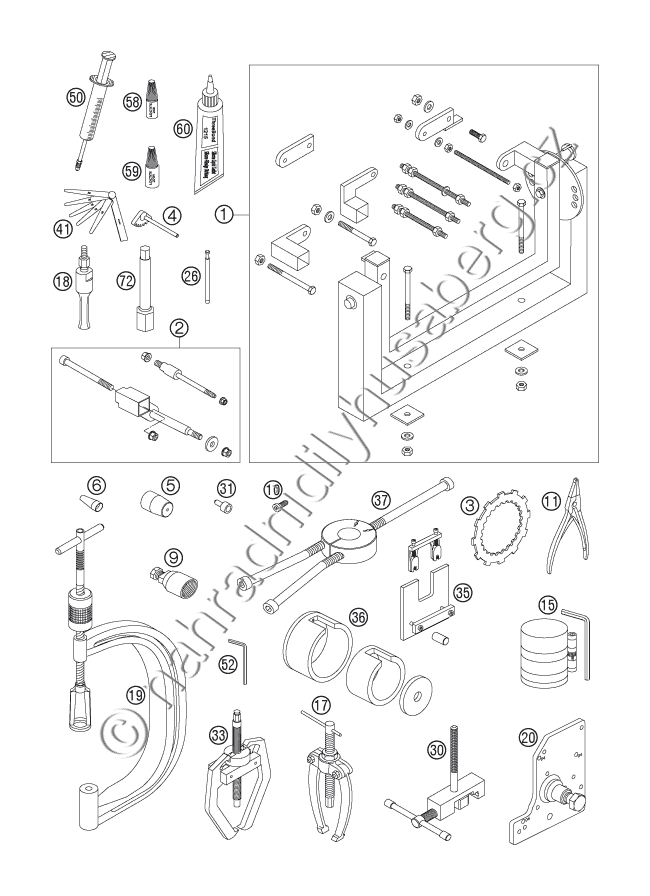

Díly pro SPECIAL TOOLS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 56012001000 ASSY SUPPORT (WITHOUT HOLDER) |
7 722 Kč | |
| 2 | 80029002000 ENGINE HOLDER HUSABERG |
Na dotaz | 1 |
| 3 | 80029003000 CLUTCH HOLDER 04 |
1 690 Kč | |
| 4 | 80029004000 GEAR SEGMENT CPL. 04 |
1 729 Kč | |
| 5 | 80029005000 MOUNT.SLEEVE F. LEFT SSR C.S. |
1 363 Kč | |
| 5 | 80029105000 MOUNT.SLEEVE F. RIGHT SSR C.S. |
1 338 Kč | |
| 5 | 80029205000 MOUNT.SLEEVE F. SSR KICKST.-S. |
1 447 Kč | |
| 6 | 59029005010 MOUNTING SLEEVE SEAL RING |
475 Kč | |
| 9 | 58012009000 FLYWHEEL EXTRACTOR |
961 Kč | |
| 10 | 58030080000 LOCATING SCREW M8 L=23 |
382 Kč | |
| 11 | 51012011000 SPECIAL CIRCLIP PLIER |
1 346 Kč | |
| 15 | 60029015000 PISTON RING COMPRESSOR CPL. 03 |
3 052 Kč | |
| 17 | 15112017000 BUSHING EXTRACTOR |
4 265 Kč | |
| 18 | 15112018000 INTERN.BEAR.PULLER 12-16 MM |
4 551 Kč | |
| 19 | 59029019000 VALVE SPRING LEVER |
7 093 Kč | |
| 20 | 80029020000 HOUSING SEPARATING TOOL 04 |
6 580 Kč | |
| 26 | 59029026006 LIMIT PLUG GAUGE F.VALVE GUIDE |
458 Kč | |
| 30 | 80029030000 RIVETTING TOOL TIMINIG CHAIN |
6 144 Kč | |
| 31 | 80029031000 PROTECTION COVER F. CRANKSHAFT |
1 089 Kč | |
| 33 | 59029033000 EXTRACTOR FOR TIMING GEAR |
5 525 Kč | |
| 35 | 80029035000 PRESS OUT TOOL CONROD BEARING |
10 757 Kč | |
| 36 | 80029036000 PRESS IN TOOL CONROD BEARING |
31 804 Kč | |
| 37 | 58429037037 MOUNTING TOOL INNER RING NJ206 |
2 021 Kč | |
| 41 | 59029041000 FEELER GAUGE SET10,12,15,20,25 |
235 Kč | |
| 50 | 50329050000 VENT INJEKTION HYDR. CLUTCH |
937 Kč | |
| 52 | 80029052000 SAFETY-TORX TX20 |
575 Kč | |
| 58 | 6899785 LOCTITE 243 BLUE 5 ML |
340 Kč | |
| 59 | 80029059000 LOCTITE 2701 GREEN 5ML |
757 Kč | |
| 60 | 58429059200 LOCTITE 5910 50ML |
419 Kč | |
| 72 | 77029072000 SPARK PLUG KEY 250 SX-F |
390 Kč |
