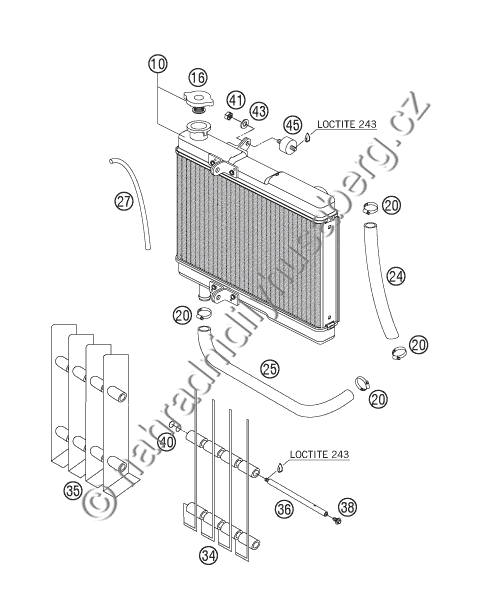

Díly pro COOLING SYSTEM FC
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 10 | 80035010000 RADIATOR 04 |
Na dotaz | 1 |
| 16 | 58035016000 RADIATOR CAP SMALL 20,3 PSI |
366 Kč | |
| 20 | 10001020300 HOSE CLAMP 18-29 |
52 Kč | |
| 24 | 80035024000 RADIATOR HOSE CYL. 400/450 04 |
127 Kč | |
| 24 | 80035024100 RADIATOR HOSE CYL. 501/550 04 |
Na dotaz | 1 |
| 24 | 80035024200 RADIATOR HOSE CYL. 650 04 |
220 Kč | |
| 25 | 80035025000 RADIAT. HOSE WAPU-RADIATOR 04 |
515 Kč | |
| 27 | 50335030001 PVC-HOSE 6X9 |
92 Kč | |
| 34 | 8003503400080 RADIATOR GUARD L/S YELLOW 04 |
190 Kč | |
| 35 | 8003503500080 RADIATOR GUARD R/S YELLOW 04 |
190 Kč | |
| 36 | 80035036000 BOLT FOR RADIAT. PROTECTOR 04 |
Na dotaz | 4 |
| 38 | 0024060106 HH COLLAR SCREW M6X10 TX30 |
29 Kč | |
| 40 | 0770010015 O-RING 10,00X1,50 NBR 70 SH |
50 Kč | |
| 41 | 0985060003 SELF LOCK. NUT DIN0985-M 6 |
20 Kč | |
| 43 | 0021060003 WASHER DIN9021-A 6,4 |
17 Kč | |
| 45 | 80035005000 VIBRAT. DAMP. 25X15M6X10/15 04 |
143 Kč |
