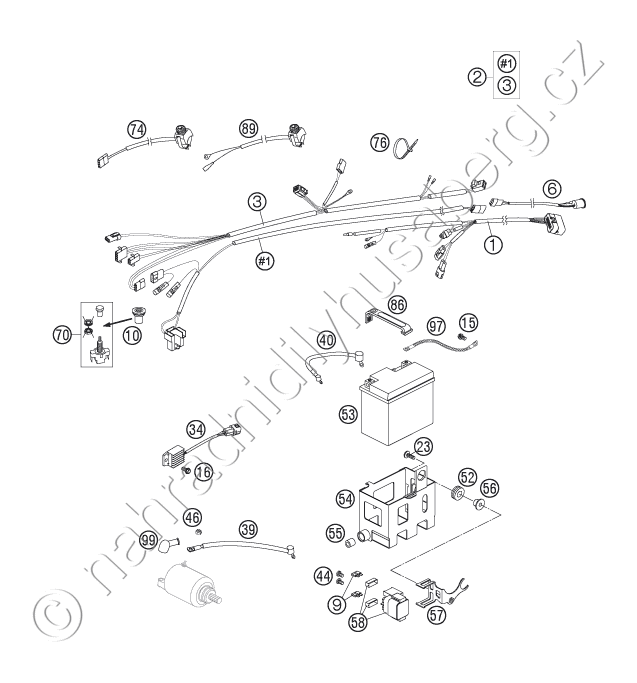

Díly pro WIRING HARNESS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 80011075300 IGNITION WIRING HARNESS 04 |
2 311 Kč | |
| 2 | 80011075400 MAIN WIRING FE/FS-USA 05 |
1 519 Kč | |
| 2 | 80011075500 MAIN WIRING FE-EU 05 |
4 171 Kč | |
| 3 | 80011079100 STARTER WIRING HARNESS 05 |
1 269 Kč | |
| 6 | 50311076000 WIRING HARNESS REAR 125-380\'98 |
323 Kč | |
| 7 | 44611207200 FLASHER UNIT 97 |
762 Kč | |
| 9 | 58011109110 FUSE 10 A 2000 |
63 Kč | |
| 10 | 54814060050 SPEC. NUT F. PULL SWITCH WS=17 |
89 Kč | |
| 15 | 0025060106 HH COLLAR SCREW M6X10 TX30 |
28 Kč | |
| 16 | 0015060123 HH COLLAR SCREW M 6X12 WS=8 |
17 Kč | |
| 20 | 0024060106 HH COLLAR SCREW M6X10 TX30 |
29 Kč | |
| 22 | 0024060156 HH COLLAR SCREW M6X15 TX30 |
29 Kč | |
| 23 | 0014060203 HH COLLAR SCREW M 6X20 WS=8 |
21 Kč | |
| 25 | 49111425200 BULB 12V 2,3W (W2X4,6D) |
23 Kč | |
| 29 | 50311029000 FLASHER SWITCH CEV \'98 |
536 Kč | |
| 34 | 80011034000 VOLTAGE REGULATOR 04 |
1 678 Kč | |
| 35 | 49011435100 BULB 12V 5W (W2,1X9,5D) PHIL. |
68 Kč | |
| 39 | 80011059000 STARTER CABLE L=190MM 04 |
288 Kč | |
| 39 | 80011059100 STARTER CABLE L=165MM 04 |
214 Kč | |
| 40 | 80011059050 BATTERY CABLE L=155MM 04 |
284 Kč | |
| 41 | 0985040163 FLAT HEAD SCREW DIN7985-M 4X16 |
17 Kč | |
| 42 | 0084040223 CYL.HEAD SCREW DIN0084-M 4X22A |
17 Kč | |
| 43 | 0912050083 SHCS DIN 912 M5X8 |
17 Kč | |
| 44 | 0902060083 AH OVAL SCREW ISO 7380 M 6X8 |
23 Kč | |
| 45 | 0934040003 HEXAGON NUT DIN0934-M 4 |
17 Kč | |
| 46 | 0985060003 SELF LOCK. NUT DIN0985-M 6 |
20 Kč | |
| 48 | 50311050100 BRAKE LIGHT SWITCH FRONT 2002 |
1 187 Kč | |
| 49 | 58611050000 BRAKE LIGHT SWITCH CPL. 05 |
1 948 Kč | |
| 51 | 50311051100 BRAKE LIGHT SWITCH REAR \'98 |
413 Kč | |
| 52 | 41001052000 RUBBER SLEEVE D=12MM |
57 Kč | |
| 53 | 80011053000 BATTERY 12V/7AH 04 |
4 544 Kč | |
| 54 | 80011054000 BATTERY CARRIER 04 |
3 170 Kč | |
| 55 | 80011054050 DAMPING RUBBER 04 |
47 Kč | |
| 56 | 80011056000 DISTANCE SPACER 6MM 04 |
Na dotaz | 1 |
| 57 | 80011058050 BRACKET FOR STARTER RELAY 04 |
320 Kč | |
| 58 | 58211058000 STARTER RELAY 12V \'99 |
1 294 Kč | |
| 60 | 50311060000 DC HORN 12V K80/L LEB |
599 Kč | |
| 61 | 80011061000 BRACKET FOR HORN 04 |
127 Kč | |
| 61 | 80011061100 BRACKET FOR HORN 05 |
102 Kč | |
| 62 | 54603048100 CLIP NUT M6 |
87 Kč | |
| 70 | 50311070000 H.LIGHT SWITCH CEV 2/4TAKT \'98 |
1 219 Kč | |
| 70 | 55011599000 PULL SWITCH LOOSE |
219 Kč | |
| 71 | 13011070060 ADAPTER FOR FLASHER SWITCH \'98 |
71 Kč | |
| 74 | 78111074000 STARTER BUTTON GREY 13 |
703 Kč | |
| 75 | 59011074100 START-STOP SWITCH 2000 |
1 033 Kč | |
| 76 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
| 76 | 44011076305 CABLE TIE 300/4,8MM BLACK |
10 Kč | |
| 78 | 58211031100 BRACKET FOR FLASHER RELAISE |
71 Kč | |
| 80 | 59011080000 FLASH.WIRINGHARNESS FRONT 2001 |
621 Kč | |
| 81 | 59011081000 FLASH.WIRINGHARNESS REAR 2001 |
257 Kč | |
| 83 | 54811083100 SUPPORT BRACKET EXC 2005 |
268 Kč | |
| 84 | 57013070100 PVC-CLAMP 7,9 MM HEYCO 3355 |
23 Kč | |
| 86 | 54611186000 RUBBER BAND |
69 Kč | |
| 89 | 50311089200 SHORT CIRCUIT BUTTON 02 |
626 Kč | |
| 97 | 80011097000 GROUND CABLE 04 |
203 Kč | |
| 99 | 58440099000 PROTECTION CAP F. STARTER ENG. |
77 Kč |
