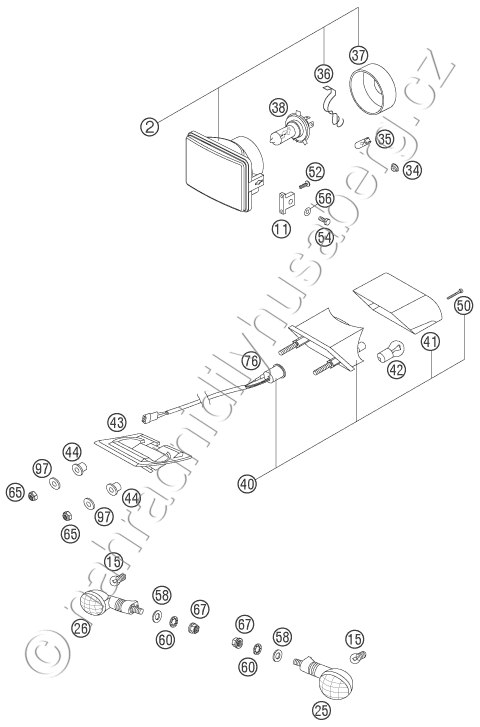

Díly pro LIGHTING SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 2 | 59014002000 HEAD LIGHT 186(RI)\'\'1003202 R\'\' |
2 101 Kč | |
| 2 | 59014002100 HEAD LIGHT 186(LE)\'\'1003203 L\'\' |
2 101 Kč | |
| 11 | 58414010100 HEAD LIGHT SUPPORT 2001 |
44 Kč | |
| 15 | 44111015100 BULB 12V 10W (BA15S) |
76 Kč | |
| 25 | 54814025200 FLASHER CPL. FR.L/S RE.R/S 09 |
567 Kč | |
| 26 | 54814026200 FLASHER CPL. FR.R/S RE.L/S 09 |
567 Kč | |
| 34 | 50210086000 COVERING CAP SFL16 |
33 Kč | |
| 35 | 49011435100 BULB 12V 5W (W2,1X9,5D) PHIL. |
68 Kč | |
| 36 | 49011436100 BULB HOLDER |
58 Kč | |
| 37 | 50211537000 RUBBER CAP |
113 Kč | |
| 38 | 54611038012 BULB HS1 12V 35/35W WHITE |
397 Kč | |
| 40 | 50314040200 REAR LIGHT CPL. EXC 07 |
1 383 Kč | |
| 41 | 50314041100 REAR LIGHT LENS 125-380 EGS\'98 |
392 Kč | |
| 42 | 58414042000 BULB 12V 21/5W (BAY15S)REINFO. |
130 Kč | |
| 43 | 80014043000 RUBBER REAR LIGHT SUPPORT 04 |
255 Kč | |
| 44 | 80008052000 COLLAR BUSHING 6,2X10X15X2 04 |
61 Kč | |
| 50 | 0981350323 SHEET MET. SCR. DIN7981 3,5X32 |
18 Kč | |
| 52 | 0016040183 SCREW FOR PLASTIC D=4X18 |
17 Kč | |
| 54 | 0933060203 HH SCREW DIN0933-M 6X20 |
17 Kč | |
| 56 | 0125060003 WASHER DIN0125-A 6,4 |
13 Kč | |
| 58 | 0125100003 WASHER DIN 125 A 10.5 |
13 Kč | |
| 60 | 0797100003 LOCK WASHER DIN6797-J10,5 ZI |
17 Kč | |
| 65 | 0985060003 SELF LOCK. NUT DIN0985-M 6 |
20 Kč | |
| 67 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 |
36 Kč | |
| 76 | 50311076000 WIRING HARNESS REAR 125-380\'98 |
323 Kč | |
| 97 | 51006097000 WASHER 6,2X22X1,ST30,W.GALV. |
25 Kč |
