SULKAR - Oficiální zastoupení Husaberg

Díly pro ZYLINDER HEAD

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 80036020044
CYLINDER HEAD CPL. 04
19 422 Kč
6 59036006090
VENT SCREW M6X10 CPL.
86 Kč
10 80036010050
CLOSING COVER 03
Na dotaz
1
11 0770291016
O-RING 29,10X1,60 NBR 70
17 Kč
19 58036099100
COLLAR SCREW M10X80 WS=13 10.9
66 Kč
20 59036090000
WASHER 10,8X18,8X1,5
23 Kč
23 59030023000
DOWEL SLEEVE 6X8X11.5
82 Kč
25 59036025101
VALVE GUIDE INTAKE
542 Kč
26 59036026101
VALVE GUIDE EXHAUST
542 Kč
27 0993012000
CIRCLIP DIN7993-RW12
5 Kč
32 0603061001
CU-SEAL RING DIN7603-6X10X1
20 Kč
34 58036065100
CU-SEAL RING 6 X 10 X 2
26 Kč
36 80030036000
CYLINDER HEAD GASKET 501 03
716 Kč
36 81030036000
CYLINDER HEAD GASKET 03
692 Kč
44 59036044100
INTAKE BOOT 03
148 Kč
44 80036044000
INTAKE BOOD 450/501/550 04
280 Kč
52 80036052000
VALVE COVER 03
793 Kč
53 80036053000
GASKET FOR VALVE COVER 03
69 Kč
61 59030061000
CLAMP D=56MM B=9MM M4X25
87 Kč
65 0939060163
STUD DIN939-M 6X16
66 Kč
68 0912050163
AH SCREW DIN0912-M 5X16
17 Kč
75 0025060206
HH COLLAR SCREW M6X20 TX30
29 Kč
76 0025060256
HH COLLAR SCREW M6X25 TX30
29 Kč
78 0025060356
HH COLLAR SCREW M6X35 TX30
29 Kč
79 0025060406
HH COLLAR SCREW M6X40 TX30
29 Kč
80 0025060456
HH COLLAR SCREW M6X45 TX30
29 Kč
82 0015060556
HH COLLAR SCR. M6X55 WS=8 10.9
50 Kč
83 0025060606
HH COLLAR SCREW M6X60 TX30
29 Kč

Další schémata

BALANCER SHAFT BALANCER SHAFT BREATHER SYSTEM BREATHER SYSTEM CARBURETOR KEIHIN FCR-MX39/41 CARBURETOR KEIHIN FCR-MX39/41 CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER LINER CYLINDER LINER ELECTRIC STARTER ELECTRIC STARTER ENGINE CASE ENGINE CASE IGNITION SYSTEM IGNITION SYSTEM KICKSTARTER KICKSTARTER LUBRICATING SYSTEM LUBRICATING SYSTEM SHIFTING MECHANISM SHIFTING MECHANISM SPECIAL TOOLS SPECIAL TOOLS TIMING DRIVE TIMING DRIVE TRANSM. I MAIN SHAFT 4-G FC TRANSM. I MAIN SHAFT 4-G FC TRANSM. I MAIN SHAFT 6-G FE+FS TRANSM. I MAIN SHAFT 6-G FE+FS TRANSM. II COUNTERSHAFT 4/6-G TRANSM. II COUNTERSHAFT 4/6-G VALVE DRIVE VALVE DRIVE ZYLINDER HEAD ZYLINDER HEAD

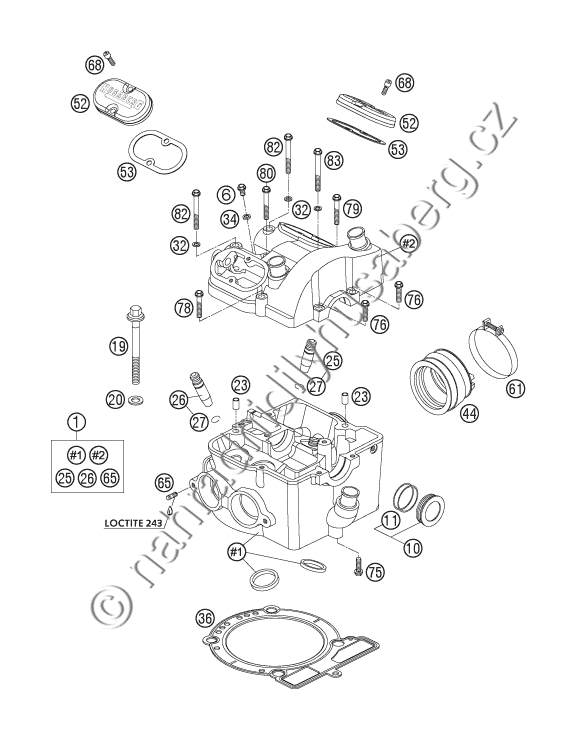

ZYLINDER HEAD

Zvětšit schéma ZYLINDER HEAD
ZYLINDER HEAD
