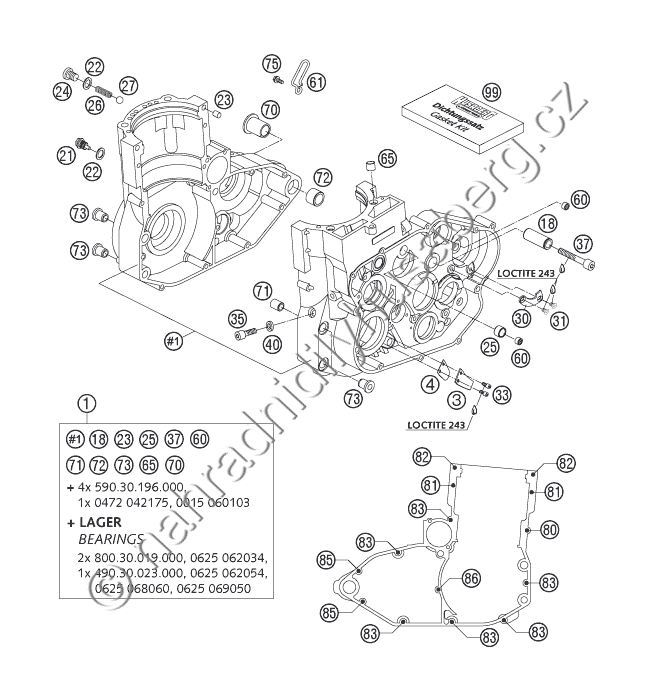

Díly pro ENGINE CASE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 80030000044 ENGINE CASE CPL. 501/550 04 |
33 050 Kč | |
| 1 | 80030058060 OIL JET \'\'60\'\' M4 |
236 Kč | |
| 1 | 82030000144 ENGINE CASE CPL. 650 05 |
33 096 Kč | |
| 3 | 80030003050 STOP SHEET MEMBRANE 03 |
589 Kč | |
| 4 | 80030003051 MEMBRANE 03 |
68 Kč | |
| 18 | 59033018000 BUSHING PIN 2000 |
270 Kč | |
| 21 | 58030021100 OILDRAIN PLUG WITH MAGNET |
196 Kč | |
| 22 | 58038022000 CU-SEAL RING DIN7603-12X18X1,5 |
28 Kč | |
| 23 | 59030023000 DOWEL SLEEVE 6X8X11.5 |
82 Kč | |
| 24 | 0908120153 THREADED PLUG DIN 908 M12X1.5 |
87 Kč | |
| 25 | 80040025050 BUSHING 12X15X9,7 |
135 Kč | |
| 26 | 80038026000 SPRING OIL PRES.RELIEF HUSA.04 |
71 Kč | |
| 27 | 0401100000 BALL D=10 DIN 5401 |
25 Kč | |
| 30 | 80033060000 ENGAGMENT SLEDGE 03 |
493 Kč | |
| 31 | 0019050106S HEX LOBE COUNTERSUNC SCREW M5X10 - 10.9 |
18 Kč | |
| 33 | 0912040063 AH SCREW DIN0912-M 4X 6 |
21 Kč | |
| 35 | 0912080163 AH SCREW DIN0912-M 8X16 |
20 Kč | |
| 37 | 0912060404 AH SCREW DIN0912-M 6X40 A2 |
28 Kč | |
| 40 | 58030081000 CU-SEAL RING 8 X 14 X 3 |
42 Kč | |
| 60 | 0618081210 NEEDLE BUSH HK 0810 DIN 618 |
71 Kč | |
| 61 | 80031081000 BOW FOR BREATHER HOSE 04 |
Na dotaz | 1 |
| 65 | 80036085000 DOWEL 10,5X12X10 03 |
82 Kč | |
| 70 | 80030170000 DOWEL ENGINE CASE REAR 03 |
206 Kč | |
| 71 | 80030071000 DOWL 9X13X15,5 03 |
Na dotaz | 1 |
| 72 | 80030072000 DOWEL 16,1X22X16 03 |
Na dotaz | 1 |
| 73 | 80030171000 DOWEL ENGINE CASE FRONT 03 |
98 Kč | |
| 75 | 0025050126 HH COLLAR SCREW M5X12 TX30 |
36 Kč | |
| 80 | 0025060356 HH COLLAR SCREW M6X35 TX30 |
29 Kč | |
| 81 | 0025060406 HH COLLAR SCREW M6X40 TX30 |
29 Kč | |
| 82 | 0025060456 HH COLLAR SCREW M6X45 TX30 |
29 Kč | |
| 83 | 0025060506 HH COLLAR SCREW M6X50 TX30 |
29 Kč | |
| 85 | 0025060606 HH COLLAR SCREW M6X60 TX30 |
29 Kč | |
| 86 | 0015060653 HH COLLAR SCREW M 6X65 WS=8 |
33 Kč | |
| 99 | 80030099000 GASKET SET 450-650 HUSABERG 04 |
6 439 Kč |
