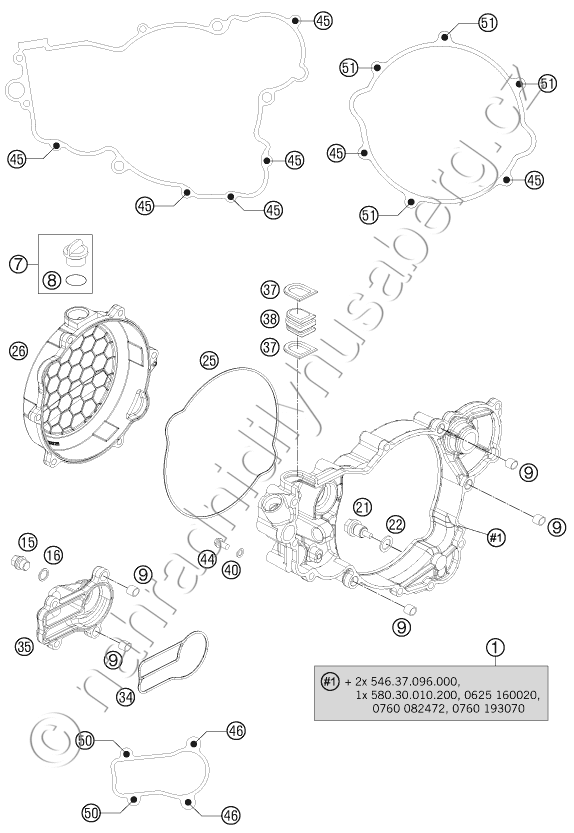

Díly pro CLUTCH COVER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 54830001244 INTERM. CLUTCH COVER CPL. |
3 866 Kč | |
| 7 | 79430020033 OIL FILLER CAP M24X3 WITH O-R |
89 Kč | |
| 8 | 0770191015 O-RING 19,00X3,00 NBR |
15 Kč | |
| 9 | 49030090100 DOWEL 9,8 X7X10 |
52 Kč | |
| 15 | 0910100003 PLUG DIN0910-M 10X1 |
87 Kč | |
| 16 | 0603100141 SEALING RING DIN 7603 10X14X1 |
27 Kč | |
| 21 | 58030021100 OILDRAIN PLUG WITH MAGNET |
196 Kč | |
| 22 | 58038022000 CU-SEAL RING DIN7603-12X18X1,5 |
28 Kč | |
| 25 | 55130027000 CLUTCH COVER GASKET |
178 Kč | |
| 26 | 5483052600089 CLUTCH COVER OUTSIDE 11 |
1 237 Kč | |
| 34 | 54835003000 GASKET WAPU-COVER 250 2003 |
87 Kč | |
| 35 | 54835001100 WATERPUMP COVER 250/300 |
728 Kč | |
| 37 | 54637107000 SEALING ELEMENT BOTTOM |
103 Kč | |
| 38 | 54837091100 SEALING CARRIER 07 |
94 Kč | |
| 40 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 44 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 45 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 46 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 50 | 0025060556 HH COLLAR SCREW M6X55 TX30 |
29 Kč | |
| 51 | 0025060606 HH COLLAR SCREW M6X60 TX30 |
29 Kč |
