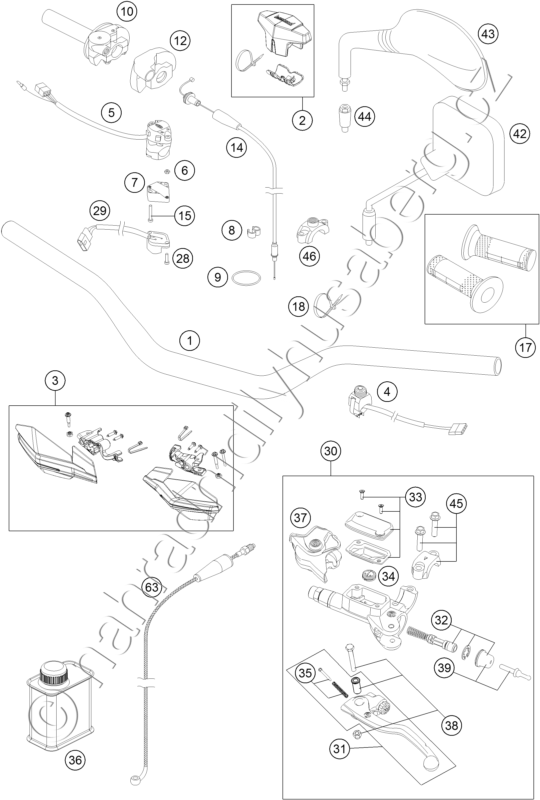

Díly pro HANDLEBAR, CONTROLS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 7800200100017 HANDLEBAR D=28MM |
2 819 Kč | |
| 2 | 81202002144 BAR PAD CPL. |
570 Kč | |
| 3 | 79602084044 HANDGUARD ASSEMBLY KIT |
446 Kč | |
| 4 | 78111074000 STARTER BUTTON GREY 13 |
703 Kč | |
| 5 | 50311070000 H.LIGHT SWITCH CEV 2/4TAKT \'98 |
1 219 Kč | |
| 6 | 0934040003 HEXAGON NUT DIN0934-M 4 |
17 Kč | |
| 7 | 13011070060 ADAPTER FOR FLASHER SWITCH \'98 |
71 Kč | |
| 8 | 60111094000 CLAMP 5/7 MM 06 |
53 Kč | |
| 9 | 0770021300 O-RING 40,94X2,62 NBR70 |
25 Kč | |
| 10 | 51502010200 THROTTLE GRIP CPL. 2ST. 13 |
1 407 Kč | |
| 12 | 50302020000 PROTECTION COVER \'97 |
280 Kč | |
| 14 | 51502091200 THROTTLE CABLE 2-ST. 2014 |
894 Kč | |
| 15 | 0084040223 CYL.HEAD SCREW DIN0084-M 4X22A |
17 Kč | |
| 17 | 81202021000 GRIP SET |
568 Kč | |
| 18 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
| 28 | 0985040203 FLAT HEAD SCREW DIN7985-M 4X20 |
17 Kč | |
| 29 | 50311029000 FLASHER SWITCH CEV \'98 |
536 Kč | |
| 30 | 54802030144 MASTER CYLINDER CPL. |
4 509 Kč | |
| 31 | 54802031000 CLUTCH LEVER CPL. BREMBO 06 |
836 Kč | |
| 32 | 54802032000 REP. KIT PISTON 06 |
831 Kč | |
| 33 | 5480200310030 COVER HYD. CLUTCH CPL. 2014 |
605 Kč | |
| 34 | 54802051000 VALVE |
318 Kč | |
| 35 | 54802052000 BOLT KPL. |
533 Kč | |
| 36 | 00062030000 BRAKE FLUID DOT5.1 0,25L |
358 Kč | |
| 37 | 54802037000 PROTECTION CAP 06 |
370 Kč | |
| 38 | 54802038100 LEVER SCREW CPL. 06 |
521 Kč | |
| 39 | 54802046000 PUSH ROD CPL. |
414 Kč | |
| 42 | 58012040000 REAR MIRROR L/S |
714 Kč | |
| 42 | 58012140000 REAR MIRROR R/S |
701 Kč | |
| 43 | 58412040000 MIRROR L/S 98 |
586 Kč | |
| 43 | 58412041000 MIRROR R/S 98 |
586 Kč | |
| 44 | 58412040050 SUPPORT FOR MIRROR LC4 \'98 |
313 Kč | |
| 45 | 54802005100 CLAMP CPL. 06 |
405 Kč | |
| 46 | 58012040150 CLAMP FOR MIRROR \'94 |
310 Kč | |
| 63 | 54832063000 CLUTCH PIPE 06 |
1 761 Kč |
