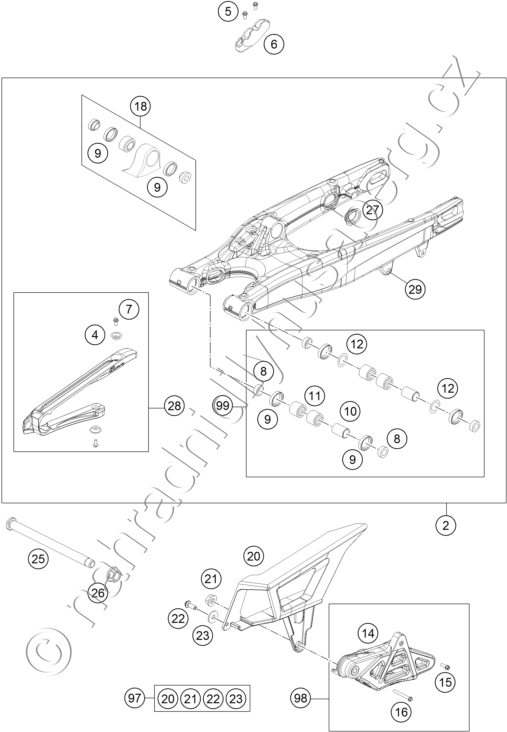

Díly pro SWING ARM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 2 | 51504030044 SWING ARM CPL. PDS 2011 |
13 495 Kč | |
| 4 | 77304066050 CHAIN SLIDER BUSHING |
39 Kč | |
| 5 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K |
20 Kč | |
| 6 | 77313047000 BRAKE HOSE GUIDE LOWER 07 |
76 Kč | |
| 7 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 |
20 Kč | |
| 8 | 77704034000 SUPPORT F. SHAFT SEAL RING 16 |
233 Kč | |
| 9 | 0760253270 RADIAL SHAFT SEAL 25X32X7 |
60 Kč | |
| 10 | 54804032000 BUSHING SLEEVE F. SWING ARM 03 |
201 Kč | |
| 11 | 58033097000 NEEDLE BEARING HK 2216 |
148 Kč | |
| 12 | 54603036000 STOP DISK 22,2X31,7X1 |
39 Kč | |
| 14 | 78104070100 CHAIN GUIDE EXC |
799 Kč | |
| 15 | 59009062019 SPECIAL SCREW M6X19 WS=8 10.9 |
31 Kč | |
| 16 | 0025060506 HH COLLAR SCREW M6X50 TX30 |
29 Kč | |
| 18 | 50304090144 PIVOT BEARING+BUSH. PDS \'11 |
1 136 Kč | |
| 20 | 78104060000 CHAINGUARD |
227 Kč | |
| 21 | 56509064100 SELF LOCKING NUT M6 10.9 |
21 Kč | |
| 22 | 0017060205 SCREW FOR PLASTIC K60X20 SW6 |
29 Kč | |
| 23 | 0021060003 WASHER DIN9021-A 6,4 |
17 Kč | |
| 25 | 77304037000 SWINGARM BOLT M16X1,5 07 |
1 192 Kč | |
| 26 | 54804038000 SELF LOCK.NUT M16X1,5 WS=19 03 |
246 Kč | |
| 27 | 77204041000 CLOSING COVER |
66 Kč | |
| 28 | 51504066044 CHAIN SLIDING GUARD KIT 11-15 |
371 Kč | |
| 29 | 54603055051 PRESS IN NUT M6 STEEL ZINC |
33 Kč | |
| 97 | 78104060010 CHAIN PROTECTION KIT EXC 12-14 |
230 Kč | |
| 98 | 78104070010 CHAIN GUIDE KIT EXC 14-15 |
799 Kč | |
| 99 | 54804230210 SWINGARM REPAIR KIT 05-15 |
1 253 Kč |
