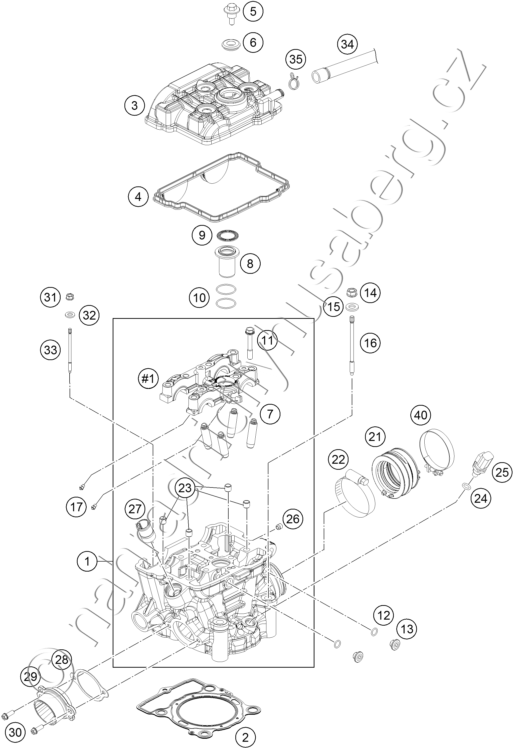

Díly pro CYLINDER HEAD
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77736220044 CYLINDER HEAD CPL. |
14 048 Kč | |
| 2 | 77730036085 CYLINDER HEAD GASKET |
942 Kč | |
| 3 | 7773605200033 VALVE COVER |
977 Kč | |
| 4 | 77736053000 VALVE COVER GASKET |
217 Kč | |
| 5 | 77336054150 VALVE COVER SCREW |
71 Kč | |
| 6 | 77036054050 RUBBER GASKET FOR SCREW 05 |
163 Kč | |
| 7 | 77136026001 VALVE GUIDE OUTLET |
815 Kč | |
| 8 | 77736075000 INSERT SPARK-PLUG SHAFT |
326 Kč | |
| 9 | 77336053050 GASKET SPARK-PLUG SHAFT |
63 Kč | |
| 10 | 0770260015 O-RING 1,5x26 |
21 Kč | |
| 11 | 77330067142 HH COLLAR SCREW M7X1X42 |
36 Kč | |
| 12 | 07700900151 O-RING 9X1,5 V80 SH |
21 Kč | |
| 13 | 77236080100 THREADED PLUG |
114 Kč | |
| 14 | 77336088210 COLLAR NUT M10X1,25 SW13 |
36 Kč | |
| 15 | 77336089010 WASHER 19X10.5X2.5 |
69 Kč | |
| 16 | 77230044000 STUD SCREW M10X1,25 |
174 Kč | |
| 17 | 60030063050 OIL JET 50 M5 |
159 Kč | |
| 21 | 77236044000 CONNECTION RUBBER EFI |
565 Kč | |
| 22 | 61036047000 HOSE CLAMP GEMI 63MM 05 |
169 Kč | |
| 23 | 77036090000 DOWEL(BUSH BRIDGE)7/9/8 05 |
69 Kč | |
| 24 | 0770100020 O-RING 10.00X2.00 SILICONE |
18 Kč | |
| 25 | 60011252000 TEMPERAT.-SENSOR WATER LC8 02 |
552 Kč | |
| 26 | 59030296000 SCREW PLUG |
151 Kč | |
| 27 | 58030010200 SCREW IN NOZZLE M20X1,5 |
166 Kč | |
| 28 | 77236041000 GASKET EXHAUST FLANGE |
180 Kč | |
| 29 | 77736039000 ENGINEFLANGE |
719 Kč | |
| 30 | 0025060166S HH COLLAR SCREW M6X16 TX30 SL |
29 Kč | |
| 31 | 77336088106 COLLAR NUT M6X1 SW8 |
231 Kč | |
| 32 | 0125060003 WASHER DIN0125-A 6,4 |
13 Kč | |
| 33 | 77330043000 STUD SCREW M6 |
241 Kč | |
| 34 | 77538087000 ENGINE BREATHER TUBE |
190 Kč | |
| 35 | 58431082300 CLAMP YDNAC 10173 (18MM) |
21 Kč | |
| 40 | 77236048000 HOSE CLAMP GEMI 58MM |
169 Kč |
