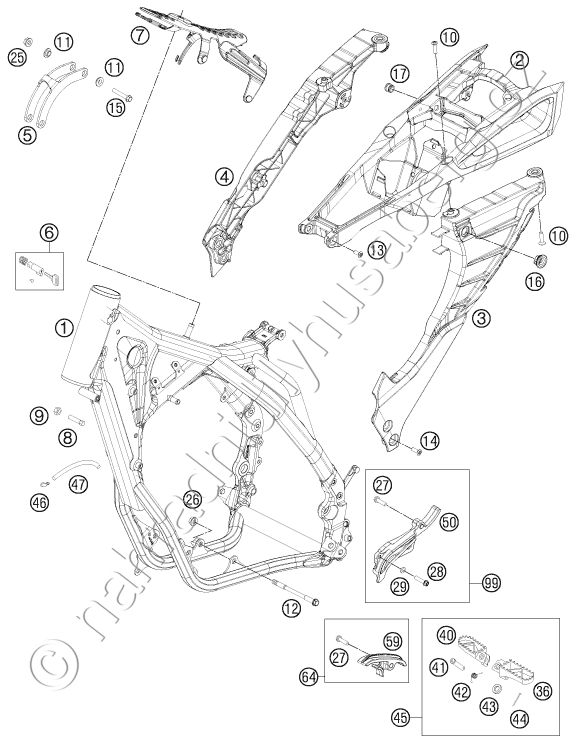

Díly pro FRAME
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 8030310110056 FRAME \'\'H548M1\'\' |
36 652 Kč | |
| 2 | 81303002110B0 SUB FRAME UPPER PART 2014 |
3 965 Kč | |
| 3 | 81303002220B0 SUB FRAME L/S 2015 |
2 183 Kč | |
| 4 | 81303002130B0 SUB FRAME R/S CPL. 2014 |
2 183 Kč | |
| 5 | 54803513100 REINFORCING B. 250 EXC 12 |
350 Kč | |
| 6 | 78003035000 STEERING HEAD LOCK 08 |
773 Kč | |
| 7 | 77207012000 TANK REST RUBBER |
153 Kč | |
| 8 | 59001037000 SPECIAL SCREW M8X26 WS=10 |
53 Kč | |
| 9 | 0934080003 HEXAGON NUT DIN0934-M 8 |
18 Kč | |
| 10 | 0019080306S COUNTER-SUNK SCREW ISA45 M8X30 |
33 Kč | |
| 11 | 54803013050 BUSHING F.REINFORCING |
61 Kč | |
| 12 | 54603013000 ENGINE BRAC.SCR. M10X105 WS13 |
199 Kč | |
| 13 | 0019080266S COUNTER-SUNK SCREW ISA45 M8X26 |
33 Kč | |
| 14 | 0019080206S FLAT HEAD SCREW M. ISA45 M8X20 |
33 Kč | |
| 15 | 56530079000S HH COLLAR SCREW M8X44 WS13 |
58 Kč | |
| 16 | 47106003160 QUICK RELEASE RUBBER GROMMET |
57 Kč | |
| 17 | 81303002011 SPACER BUSHING 12X9X6,2 |
45 Kč | |
| 25 | 54310086200 SELF LOCKING NUT M8 10.9 |
21 Kč | |
| 26 | 54310086100 SELF LOCKING NUT M10 CU WS=14 |
20 Kč | |
| 27 | 0025080306 HH COLLAR SCREW M8X30 TX40 |
32 Kč | |
| 28 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 29 | 0125060003 WASHER DIN0125-A 6,4 |
13 Kč | |
| 36 | 78003040050 FOOTREST L/S 08 |
858 Kč | |
| 40 | 78003041050 FOOTREST R/S 08 |
858 Kč | |
| 41 | 54803044000 BOLT FOR FOOT PED 03 |
203 Kč | |
| 42 | 54603041000 FOOTREST SPRING L/S & R/S |
71 Kč | |
| 43 | 0125100003 WASHER DIN 125 A 10.5 |
13 Kč | |
| 44 | 0094032250 PIN DIN 0094-3.2X25 NIRO |
5 Kč | |
| 45 | 78003040033 FOOTREST L/S + R/S CPL. 09 |
1 440 Kč | |
| 46 | 50303089000 ANGEL PIECE \'97 |
50 Kč | |
| 47 | 55007016001 PVC-HOSE 7X10 PER METER |
87 Kč | |
| 50 | 54803096000 SPROCKET COVER 250 SX 07 |
246 Kč | |
| 59 | 77203053000 CHAIN SLIDER LOWER PART CPL. |
158 Kč | |
| 64 | 77203053010 CHAIN SLIDING KIT BELOW CPL.11 |
171 Kč | |
| 99 | 54803096010 SPROCKET COVER KIT |
347 Kč |
