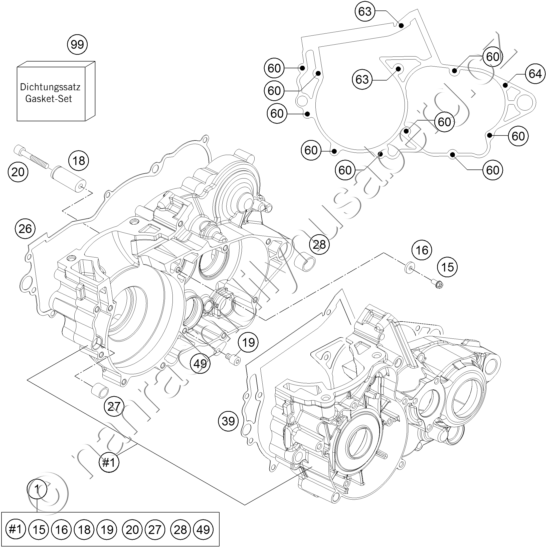

Díly pro ENGINE CASE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 55130000344 ENGINE CASE CPL. 250/300 2012 |
15 659 Kč | |
| 15 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 16 | 50232050001 STEEL WASHER 6,4X17X3 |
37 Kč | |
| 18 | 59033018000 BUSHING PIN 2000 |
270 Kč | |
| 19 | 0912060123 AH SCREW DIN0912-M 6X12 |
17 Kč | |
| 20 | 0912060404 AH SCREW DIN0912-M 6X40 A2 |
28 Kč | |
| 26 | 54830024100 CLUTCH COVER GASKET INSIDE |
382 Kč | |
| 27 | 54630027000 DOWEL BUSHING 13,8X11X12 |
143 Kč | |
| 28 | 54830027000 DOWEL 21X12 03 |
103 Kč | |
| 39 | 54830039000 ENGINE CASE GASKET 2003 |
233 Kč | |
| 49 | 54634049000 RETAINING PLATE |
50 Kč | |
| 60 | 0025060406 HH COLLAR SCREW M6X40 TX30 |
29 Kč | |
| 63 | 0025060556 HH COLLAR SCREW M6X55 TX30 |
29 Kč | |
| 64 | 0025060606 HH COLLAR SCREW M6X60 TX30 |
29 Kč | |
| 99 | 55130099001 GASKET SET 250/300 08 |
4 387 Kč |
