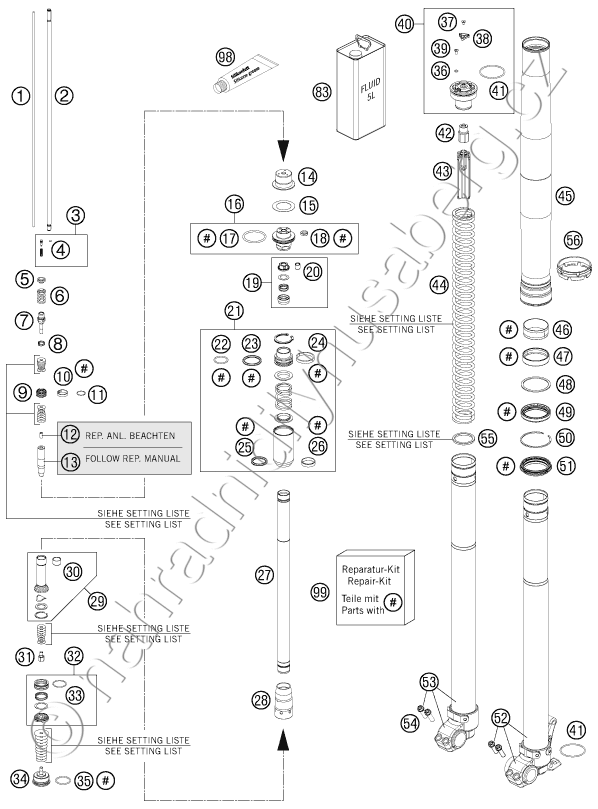

Díly pro FRONT FORK DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 48600996 ADJUSTMENT TUBE L486 OD3 |
92 Kč | |
| 2 | 48601054 PISTON ROD D8 L497 |
927 Kč | |
| 3 | 48600998S ADJ - NEEDLE CPL. |
105 Kč | |
| 4 | 46811265 O-RING VITON 2,2X1,6 |
36 Kč | |
| 5 | 48601048 GUIDE SHIM REBOUND SPRING |
20 Kč | |
| 6 | 48601049 REBOUND SPRING L25 |
50 Kč | |
| 7 | 48600986 TAP REBOUND M8 |
252 Kč | |
| 8 | 48600382 SHUTTLE VALVE SPRING C=0,4 |
52 Kč | |
| 9 | 48600985E PISTON REBOUND D20 |
478 Kč | |
| 10 | 48601171 Z-CUT RING D18 PLASTIC |
105 Kč | |
| 11 | 48601128 O-RING 15X1 |
25 Kč | |
| 12 | 48601033 PUSHER D=5,5 |
41 Kč | |
| 13 | 48600999 NEEDLE D14 WHITE |
180 Kč | |
| 13 | 48601123 NEEDLE D14 RED |
180 Kč | |
| 14 | 48601061 SPRING GUIDANCE BELOW |
36 Kč | |
| 15 | 48601184 SHIM 29X44X0,3 |
58 Kč | |
| 16 | 48601022S SCREW SLEEVE M23,5 CPL. |
557 Kč | |
| 17 | 48601130 O-RING 40X3 |
25 Kč | |
| 18 | 48600954 GASKET D8 |
118 Kč | |
| 19 | 48601025S1 CHECK VALVE D21 CPL. |
751 Kč | |
| 20 | 48600953 GUIDING BUSH 8X10X10 |
118 Kč | |
| 21 | 48601021S PRESSURE TANK L74,5 D36 S CPL. |
927 Kč | |
| 22 | 48601127 O-RING 24X2 |
105 Kč | |
| 23 | 48601111 QUAD RING 29,74X3,53 |
55 Kč | |
| 24 | 48601124 BUSHING DO=36 DI=32 B5 |
105 Kč | |
| 25 | 48601110 QUAD RING 24,99X3,53 |
41 Kč | |
| 26 | 48601109 SLIDE BEARING |
41 Kč | |
| 27 | 48601031 TUBE D20 L403 |
966 Kč | |
| 28 | 48601019 SCREW SLEEVE D20/28 |
570 Kč | |
| 29 | R14034 HYDROSTOP KIT |
395 Kč | |
| 30 | 48601180 BUSHING |
41 Kč | |
| 31 | 48601083 NUT M6X0,5 |
41 Kč | |
| 32 | 48600984S PISTON COMPRESSION D=28 CPL. |
376 Kč | |
| 33 | 48601133 O-RING 24X1,5 |
25 Kč | |
| 34 | 48601247 SCREW CAP M30 |
562 Kč | |
| 35 | 48601132 O-RING 26X2 |
25 Kč | |
| 36 | 50180222 O-RING NBR 4X1,5 |
29 Kč | |
| 37 | 48600527 AH SCREW M4X6 |
23 Kč | |
| 38 | 48601117 ADJUSTMENT DIAL COM WHITE |
20 Kč | |
| 38 | 48601118S ADJUSTER REB. RED CPL. |
68 Kč | |
| 39 | 48600481 VENT SCREW M4X8 |
26 Kč | |
| 40 | 48601050E SCREW CAP M51X1,5 REB. KPL. |
1 315 Kč | |
| 40 | 48601116E SCREW CAP M51X1,5 CPL. |
1 315 Kč | |
| 41 | 48600048 O-RING NBR 46 X 2 |
44 Kč | |
| 42 | 48601034 COUNTERNUT M8 |
89 Kč | |
| 43 | 48601035 SPRING GUIDANCE D23 |
50 Kč | |
| 44 | 91410082S SPRING D43,8 L465 3,8N/MM SET |
3 382 Kč | |
| 44 | 91410083S SPRING D43,8 L465 4,0N/MM SET |
3 382 Kč | |
| 44 | 91410084S SPRING D43,8 L465 4,2N/MM SET |
3 382 Kč | |
| 44 | 91410085S SPRING D43,8 L465 4,4N/MM SET |
3 382 Kč | |
| 44 | 91410086S SPRING D43,8 L465 4,6N/MM SET |
3 382 Kč | |
| 44 | 91410092S SPRING D43,8 L465 4,8N/MM SET |
3 382 Kč | |
| 44 | 91410093S SPRING D43,8 L465 5,0N/MM SET |
3 382 Kč | |
| 44 | 91410094S SPRING D43,8 L465 5,2N/MM SET |
3 382 Kč | |
| 45 | 48600736 OUTER TUBE L577 D54/60MM 2L |
8 770 Kč | |
| 46 | 48601008 GUIDING BUSH 47X49X20 R11 |
219 Kč | |
| 47 | 48601009 GUIDING BUSH 48X52X12 R11 |
219 Kč | |
| 48 | 48600013 SUPPORT RING 50 X 57,6 X 1,5 |
118 Kč | |
| 49 | 48601414 OELSEALRING 48X57,9X11,4 |
377 Kč | |
| 50 | 48600070 LOCK WASHER SB58 |
44 Kč | |
| 51 | 48601178 DUST SEAL DL48X58,4X5,7 RED |
340 Kč | |
| 52 | 48601028S1 AXLE CLAMP L/S WITH INNER TUBE |
6 976 Kč | |
| 53 | 48601029S1 AXLE CLAMP R/S WITH INNER TUBE |
6 976 Kč | |
| 54 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
| 55 | 48600456 SPACER 43X35X2,5 |
340 Kč | |
| 55 | 48600457 SPACER 43X35X5 |
61 Kč | |
| 55 | 48600458 SPACER 43X35X1,5 |
340 Kč | |
| 56 | 48600698 FORK PROTECTION RING 08 |
73 Kč | |
| 83 | 48601166S1 FORK OIL SAE4 5L |
2 949 Kč | |
| 98 | T14034 FUCHS GREASE IPR (250G) |
1 280 Kč | |
| 99 | R24001 REPAIR - KIT |
2 337 Kč |
