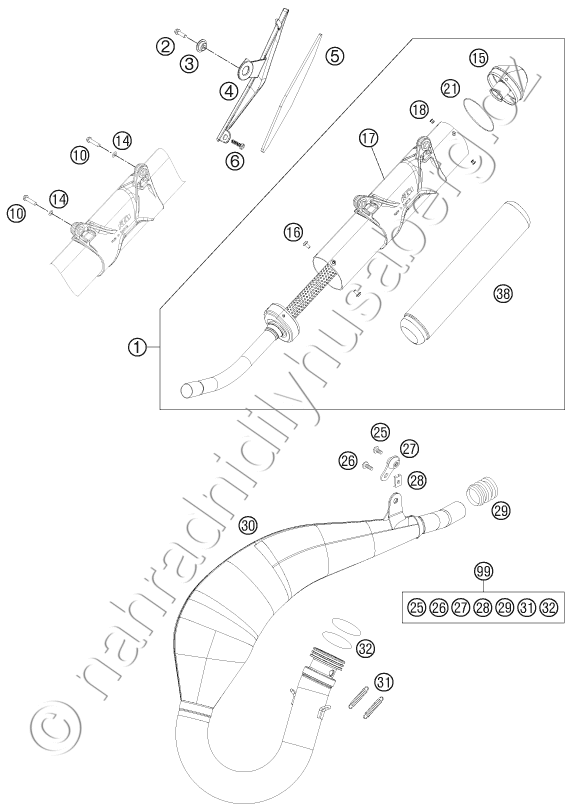

Díly pro EXHAUST SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50305083200 SILENCER 125 EXC |
5 128 Kč | |
| 2 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 3 | 77308013010 COLLAR BUSH. F.REAR FENDER 07 |
106 Kč | |
| 4 | 81305011000B0 HEAT SHIELD GREY |
180 Kč | |
| 5 | 81305011050 THERMAL PROTECTION FOIL |
340 Kč | |
| 6 | 0080060123 EJOT ALTRACS 60X12 TX30 |
29 Kč | |
| 10 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 14 | 0137060003 SPRING WASHER DIN 137 B - 6 |
17 Kč | |
| 15 | 50305083260 END CAP CPL. |
2 128 Kč | |
| 16 | 58605083010 SCREW TORX M5X10 05 |
34 Kč | |
| 17 | 50305183085 SILENCER HOUS. CPL. W. HANGING |
1 961 Kč | |
| 18 | 0011480800 DUMMY RIVET 4,8X 8 NIRO |
39 Kč | |
| 21 | 0770740015 O-RING 74,00X1,50 FKM 75SH |
58 Kč | |
| 25 | 0024060106 HH COLLAR SCREW M6X10 TX30 |
29 Kč | |
| 26 | 0024060156 HH COLLAR SCREW M6X15 TX30 |
29 Kč | |
| 27 | 50305012000 SWINGELEMENT FOR EXHAUST PIPE |
257 Kč | |
| 28 | 54603048100 CLIP NUT M6 |
87 Kč | |
| 29 | 54605057000 RUBBER SLEEVE D=21MM/23MM \'93 |
467 Kč | |
| 30 | 50305107000 EXHAUST MANIFOLD |
5 176 Kč | |
| 30 | 50305109000 EXHAUST PIPE 125EXC DW CPL. 12 |
7 111 Kč | |
| 31 | 50305016000 TEN.SPRING L=62MM EY.MOVEABLE |
98 Kč | |
| 32 | 0770440030 O-RING 44,00X3,00 VITON |
58 Kč | |
| 38 | 54805078265 ROCK WOOL 265G |
882 Kč | |
| 99 | 00050000811 EXHAUST HARDWARE KIT 11-14 |
1 280 Kč |
