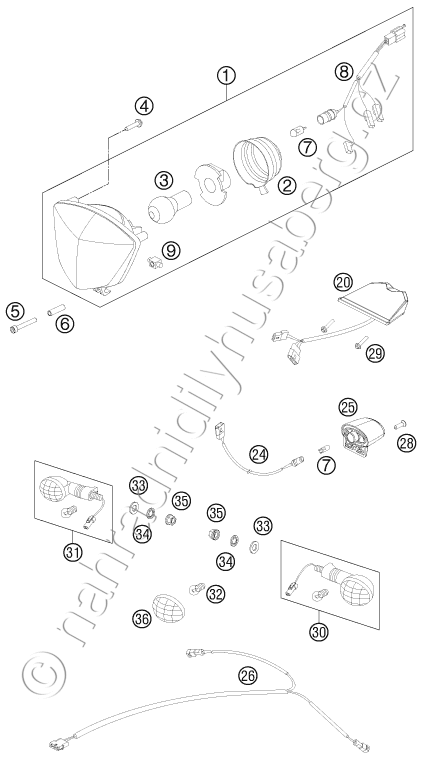

Díly pro LIGHTING SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 81214001000 HEAD LIGHT |
2 328 Kč | |
| 2 | 54814001050 RUBBER CAP FOR HEAD LIGHT 05 |
193 Kč | |
| 3 | 44111038000 BILUX-BULB 12V 35/35W BA20D |
396 Kč | |
| 4 | 0081050181 SCREW FOR PLASTIC K50X18 T20 |
20 Kč | |
| 5 | 0912050353 AH SCREW DIN912 M5X35 |
20 Kč | |
| 6 | 81208008000 DIST. HOSE F. HEAD LIGHT MASK |
41 Kč | |
| 7 | 49011435100 BULB 12V 5W (W2,1X9,5D) PHIL. |
68 Kč | |
| 8 | 54811001050 CABLE FOR HEAD LIGHT 2005 |
199 Kč | |
| 9 | 81208003010 INSERT FOR HEAD LIGHT SUPPORT |
57 Kč | |
| 20 | 76514040000 REAR LIGHT |
1 878 Kč | |
| 24 | 76511078000 WIRING HARN. LIC. PLATE ILLUM. |
175 Kč | |
| 25 | 75014047000 LICENSE PLATE ILLUMINATION 07 |
212 Kč | |
| 26 | 77411081000 REAR FLASHER WIR. HARNESS 12 |
414 Kč | |
| 28 | 0081250181 SCREW FOR PLASTIC 50X18 T20 |
17 Kč | |
| 29 | 0017060255 EJOT PT SCREW K60X25-Z SW6 |
17 Kč | |
| 30 | 54814025200 FLASHER CPL. FR.L/S RE.R/S 09 |
567 Kč | |
| 31 | 54814026200 FLASHER CPL. FR.R/S RE.L/S 09 |
567 Kč | |
| 32 | 44111015100 BULB 12V 10W (BA15S) |
76 Kč | |
| 33 | 0125100003 WASHER DIN 125 A 10.5 |
13 Kč | |
| 34 | 0797100003 LOCK WASHER DIN6797-J10,5 ZI |
17 Kč | |
| 35 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 |
36 Kč | |
| 36 | 54814028000 FLASHER LENS L/S R/S 05 |
130 Kč |
