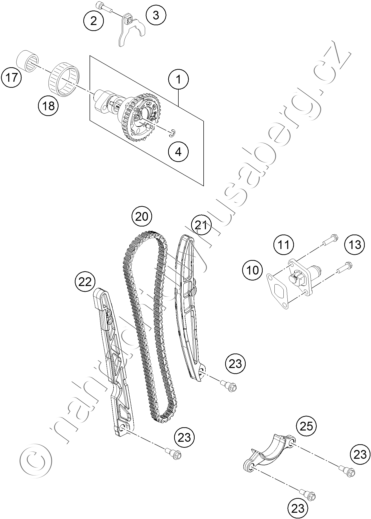

Díly pro TIMING DRIVE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 78136010033 CAMSHAFT CPL. WITH DECO |
5 400 Kč | |
| 2 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 3 | 78036012033 RETAINING PLATE CAMSHAFT CPL. |
239 Kč | |
| 4 | 0799050000 TAB WASHER DIN6799 RS5 |
20 Kč | |
| 10 | 59036003050 GASKET TIMING CHAIN TENSIONER |
84 Kč | |
| 11 | 59036003000 TIMINGCHAIN TENSIONER CPL.RAC. |
972 Kč | |
| 13 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 17 | 0618182414 NEEDLE SLEEVE HK1814RS18/24/14 |
156 Kč | |
| 18 | 0618404712 NEEDLE SLEEVE HK4012B40X47X12 |
201 Kč | |
| 20 | 78036013000 TIMING CHAIN 110T 08 |
1 411 Kč | |
| 21 | 78136002100 TIMING CHAIN TENSIONER |
129 Kč | |
| 22 | 78136001000 TIMING CHAIN GUIDE |
158 Kč | |
| 23 | 77236001160 BUSHING SCREW M6 |
156 Kč | |
| 25 | 78136018000 FAILURE PROTECTION |
42 Kč |
