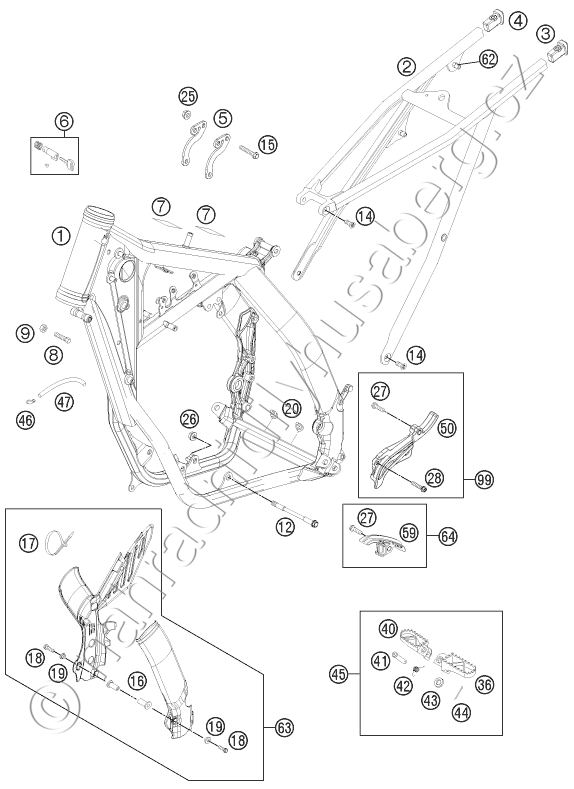

Díly pro FRAME
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 54803401200DA FRAME 250/300 \'\'CC08\'\' YELLOW |
32 563 Kč | |
| 2 | 77303002000 SUB FRAME SX \'\'Q7\'\' 07 |
7 177 Kč | |
| 3 | 78103002010 SUB FRAME APPLICATION LEFT |
185 Kč | |
| 4 | 78103002020 SUB FRAME APPLICATION RIGHT |
185 Kč | |
| 5 | 54803413000 REINFORCING B. 250 SX 07 |
350 Kč | |
| 6 | 78003035000 STEERING HEAD LOCK 08 |
773 Kč | |
| 7 | 50307012000 ADH. FOIL TRANSP. 80X80 MM 04 |
39 Kč | |
| 8 | 59001037000 SPECIAL SCREW M8X26 WS=10 |
53 Kč | |
| 9 | 0934080003 HEXAGON NUT DIN0934-M 8 |
18 Kč | |
| 12 | 54603013000 ENGINE BRAC.SCR. M10X105 WS13 |
199 Kč | |
| 14 | 0019080206S FLAT HEAD SCREW M. ISA45 M8X20 |
33 Kč | |
| 15 | 56530079000S HH COLLAR SCREW M8X44 WS13 |
58 Kč | |
| 16 | 54803092050 BLIND PLUG-IN NUT M5 WN 22A 03 |
66 Kč | |
| 17 | 44011076305 CABLE TIE 300/4,8MM BLACK |
10 Kč | |
| 18 | 0738050250 COU.SUNK SCR. AH ISO7380 M5X25 |
15 Kč | |
| 19 | 54803092060 BUSH F. FRAME PROTECTION 03 |
73 Kč | |
| 20 | 54403135000 PLASTIC CAP SFL10 |
29 Kč | |
| 25 | 54310086200 SELF LOCKING NUT M8 10.9 |
21 Kč | |
| 26 | 54310086100 SELF LOCKING NUT M10 CU WS=14 |
20 Kč | |
| 27 | 0025080306 HH COLLAR SCREW M8X30 TX40 |
32 Kč | |
| 28 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 36 | 78003040050 FOOTREST L/S 08 |
858 Kč | |
| 40 | 78003041050 FOOTREST R/S 08 |
858 Kč | |
| 41 | 54803044000 BOLT FOR FOOT PED 03 |
203 Kč | |
| 42 | 54603041000 FOOTREST SPRING L/S & R/S |
71 Kč | |
| 43 | 0125100003 WASHER DIN 125 A 10.5 |
13 Kč | |
| 44 | 0094032250 PIN DIN 0094-3.2X25 NIRO |
5 Kč | |
| 45 | 78003040033 FOOTREST L/S + R/S CPL. 09 |
1 440 Kč | |
| 46 | 50303089000 ANGEL PIECE \'97 |
50 Kč | |
| 47 | 55007016001 PVC-HOSE 7X10 PER METER |
87 Kč | |
| 50 | 54803096000 SPROCKET COVER 250 SX 07 |
246 Kč | |
| 59 | 77303053000 CHAIN SLIDING PIECE BELOW 07 |
195 Kč | |
| 62 | 77303139000 BLIND RIVET NUT EM6-60LF/HX |
53 Kč | |
| 63 | 77303094100 PLASTIC FRAME PROTECTION SET |
764 Kč | |
| 64 | 77303053010 CHAIN SLIDING KIT BELOW CPL 07 |
188 Kč | |
| 99 | 54803096010 SPROCKET COVER KIT |
347 Kč |
