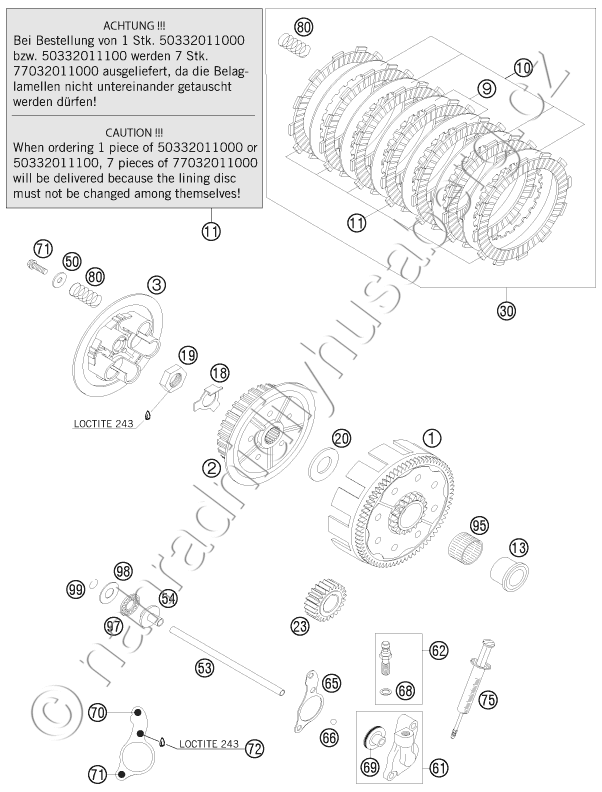

Díly pro CLUTCH
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50332001044 OUTER CLUTCH HUB \'98 |
8 605 Kč | |
| 2 | 50332002000 INNER CLUTCH HUB 125/200\'98 |
1 847 Kč | |
| 3 | 50332003000 PRESSURE PLATE 125/200\'98 |
1 237 Kč | |
| 9 | 50332010100 INTERMEDI. DISC STEEL 1,5MM\'98 |
207 Kč | |
| 10 | 50332010400 INTERMEDIATE DISC 1,5MM |
337 Kč | |
| 11 | 77032011000 LINING DISC 3,0MM 05 |
525 Kč | |
| 13 | 50332013000 INNER RING 20X26X25,9 \'98 |
435 Kč | |
| 18 | 50332018000 SHEET METAL LOCK 1,5MM \'98 |
66 Kč | |
| 19 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. |
102 Kč | |
| 20 | 50332020000 STOP DISK 20X39,6X3 \'98 |
199 Kč | |
| 23 | 50332023023 PRIM. PINION 23-T 125/200\'98 |
1 245 Kč | |
| 30 | 50332011210 CLUTCH KIT 125/200 06-14 |
5 527 Kč | |
| 50 | 50232050000 WASHER 6,2X18X2 |
26 Kč | |
| 53 | 50332017300 PUSH ROD L=178 125/200 2006 |
196 Kč | |
| 54 | 50332054051 PRESSURE PIECE 125-380 \'98 |
Na dotaz | 1 |
| 61 | 50332061044 CYLINDER CPL. 125/200\'98 |
3 064 Kč | |
| 62 | 50332062000 HOLLOW SCREW CPL. M 10X1 \'98 |
717 Kč | |
| 65 | 50332065051 CLUTCH RELEASE GASKET 0,3MM |
44 Kč | |
| 65 | 50332065052 CLUTCH RELEASE GASKET 0,5MM |
47 Kč | |
| 65 | 50332065053 CLUTCH RELEASE GASKET 0,75MM |
57 Kč | |
| 66 | 0401070003 BALL DIN5401-7 |
28 Kč | |
| 68 | 42013226000 CU-SEAL RING DIN7603-10X16X1 |
28 Kč | |
| 69 | 50332066000 PISTON W. O-RING 125/200 2000 |
940 Kč | |
| 70 | 0025060406 HH COLLAR SCREW M6X40 TX30 |
29 Kč | |
| 71 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 72 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 75 | 50329050000 VENT INJEKTION HYDR. CLUTCH |
937 Kč | |
| 80 | 52332005200 CLUTCH SPRING |
227 Kč | |
| 95 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE |
321 Kč | |
| 97 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 |
150 Kč | |
| 98 | 54637098200 AXIAL WASHER AS1226 12X26X1 |
57 Kč | |
| 98 | 54637098300 AXIAL WASHER 12,5X25,8X1,5 |
37 Kč | |
| 99 | 0993012000 CIRCLIP DIN7993-RW12 |
5 Kč |
