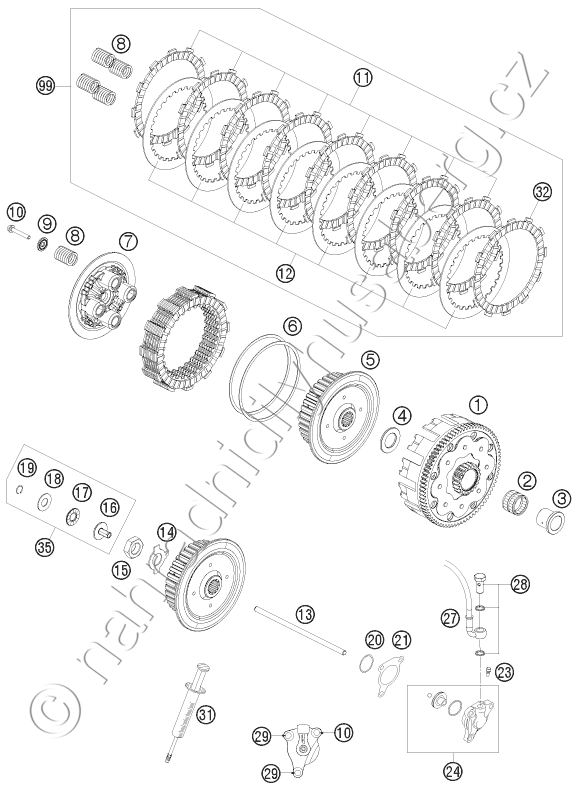

Díly pro CLUTCH
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 78032001144 CLUTCH CAGE CPL. 2010 |
12 243 Kč | |
| 2 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE |
321 Kč | |
| 3 | 78032015000 INNER RING |
441 Kč | |
| 4 | 78032020000 STOP DISC 08 |
220 Kč | |
| 5 | 78032002200 INNER CLUTCH HUB |
3 207 Kč | |
| 6 | 78032009000 JUDDER SPRING CPL. |
953 Kč | |
| 7 | 78032003100 PRESSURE PLATE |
2 200 Kč | |
| 8 | 81732005000 CLUTCH SPRING |
203 Kč | |
| 9 | 58432081000 WASHER 6,5 X 20 X 2 |
69 Kč | |
| 10 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 11 | 78032011000 LINING DISC 08 |
586 Kč | |
| 12 | 78032010100 FRICTION PLATE STEEL |
238 Kč | |
| 13 | 78032054100 PUSH ROD L=186 |
191 Kč | |
| 14 | 77332018000 RETAINING PLATE |
53 Kč | |
| 15 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. |
102 Kč | |
| 16 | 78032057000 PRESSURE PIECE |
340 Kč | |
| 17 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 |
150 Kč | |
| 18 | 54637098200 AXIAL WASHER AS1226 12X26X1 |
57 Kč | |
| 19 | 0993012000 CIRCLIP DIN7993-RW12 |
5 Kč | |
| 20 | 0770300015 O-RING 30,00X1,50 NBR 70 |
33 Kč | |
| 21 | 59032065000 GASKET FOR SLAVE CYLINDER |
45 Kč | |
| 23 | 54732064000 BLEEDER SCREW WITH CAP |
512 Kč | |
| 24 | 75032061044 OUTPUT CYL. WITH BLEEDER SCREW |
3 820 Kč | |
| 27 | 81232063000 CLUTCH PIPE 09 |
2 904 Kč | |
| 28 | 59032062000 HOLLOW SCREW + COPPER GASKET |
568 Kč | |
| 29 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 31 | 50329050000 VENT INJEKTION HYDR. CLUTCH |
937 Kč | |
| 32 | 78032111100 LINING DISC TURNED OFF |
980 Kč | |
| 35 | 78032057044 PRESSURE PIECE CPL. 08 |
512 Kč | |
| 99 | 78032111010 CLUTCH-KIT |
7 071 Kč |
