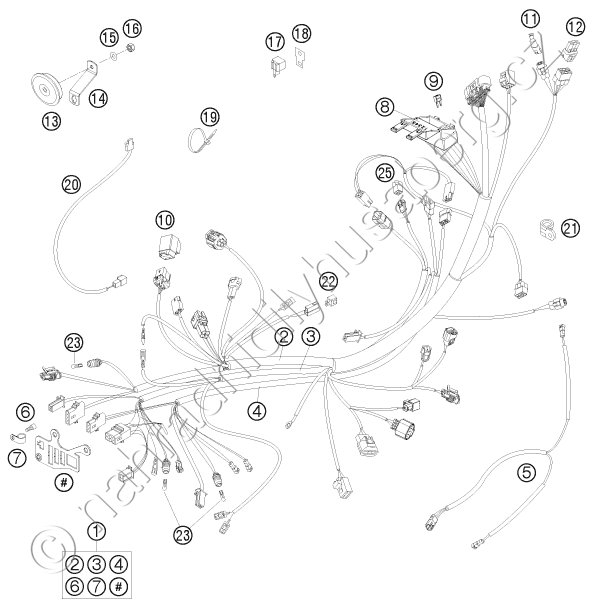

Díly pro WIRING HARNESS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 81211075110 WIRING HARNESS 2010 |
10 795 Kč | |
| 2 | 81211075110 WIRING HARNESS 2010 |
10 795 Kč | |
| 3 | 81211075120 WIRING HARNESS LIGHT 2010 |
1 823 Kč | |
| 4 | 81211075130 WIRING HARNESS FLASHER 2010 |
1 823 Kč | |
| 5 | 81211081000 REAR FLASHER WIR. HARNESS 2010 |
414 Kč | |
| 6 | 0912050083 SHCS DIN 912 M5X8 |
17 Kč | |
| 7 | 57013070000 PVC-CLAMP 7/16\'\' HEYCO 3377 |
29 Kč | |
| 8 | 58411087050 RUBBERCOVER F.LOCKHOLDER |
260 Kč | |
| 9 | 75011088010 FUSE 10A 07 |
69 Kč | |
| 10 | 61111057000 RELAY CM1A-R-12V-H80 07 |
257 Kč | |
| 11 | 69011040000 END PLUG CAN-BUS 08 |
251 Kč | |
| 12 | 000700000BH SPARE CONNECTOR BH 6-PINS |
433 Kč | |
| 13 | 50311060200 DC HORN 12V 07 |
541 Kč | |
| 14 | 78011061000 HORN BRACKET EXC 08 |
69 Kč | |
| 15 | 0125050003 WASHER DIN0125-A 5,3 |
17 Kč | |
| 16 | 0934050003 HEXAGON NUT DIN0934-M 5 |
20 Kč | |
| 17 | 44611207200 FLASHER UNIT 97 |
762 Kč | |
| 18 | 58211031100 BRACKET FOR FLASHER RELAISE |
71 Kč | |
| 19 | 44011076140 CABLE TIE 140/2,5MM BLACK |
10 Kč | |
| 19 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
| 19 | 44011076305 CABLE TIE 300/4,8MM BLACK |
10 Kč | |
| 20 | 50311050100 BRAKE LIGHT SWITCH FRONT 2002 |
1 187 Kč | |
| 21 | 54211052000 CLAMP RSGU 24/15 |
57 Kč | |
| 22 | 58411096100 DIODE S3H-15 97 |
180 Kč | |
| 23 | 49111425200 BULB 12V 2,3W (W2X4,6D) |
23 Kč | |
| 25 | 81211096000 DUMMY PLUG AN 4-PIN |
135 Kč |
