SULKAR - Oficiální zastoupení Husaberg

Díly pro SHIFTING MECHANISM

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 54734031000
SHIFT LEVER CPL. 2-STROKE 2001
1 493 Kč
2 59009062016
SPECIAL SCREW M6X16 WS=8 10.9
31 Kč
3 50232050001
STEEL WASHER 6,4X17X3
37 Kč
4 0760142460
RADIAL SHAFT SEAL 14X24X6 B
77 Kč
5 54632095000
NEEDLE SLEEVE HK 1412 14X20X12
97 Kč
6 54634050000
STOP DISK 14X30X1
29 Kč
7 54634014100
RETURN SPRING 2,2MM \'95
79 Kč
8 54634020000
SPRING GUIDE
116 Kč
9 56534013100
TENSIONING SPRING 0,8MM
44 Kč
10 78034005233
SHIFT SHAFT CPL. ASSY
2 050 Kč
11 61234008044
SLIDING PLATE
150 Kč
12 0018050103
INT. TORX OVAL HEAD M 5X10 8.8
23 Kč
13 78034020000
SHIFT RAIL 11,8X101,5
222 Kč
14 58038023200
PRESSURE SPRING 0,9MM
52 Kč
15 50334018100
SHIFTING ROLLER 6X8X5,2
58 Kč
16 78134015044
SHIFT DRUM LOCATING ALU CPL.
631 Kč
17 78034012000
SHIFT ROLLER
1 274 Kč
18 0012060303
AH SCREW DIN6912 M6X30 8.8
28 Kč
20 77034024044
LOCKING LEVER CPL. 08
324 Kč
21 0025050206
HH COLLAR SCREW M5X20 TX30
20 Kč
22 54634052300
SLEEVE FOR LOCKING LEVER
63 Kč
23 60034023000
ARRESTING LEVER SPRING 03
47 Kč
24 78034019000
SHIFT RAIL 11,8X85
178 Kč
25 59034001100
SHIFTING FORK 5./6. GEAR
684 Kč
26 0349000050
WASHER DIN7349-5X15X2
17 Kč
27 59034002100
SHIFTING FORK 2./4. GEAR
684 Kč
28 0625618050
BALL BEARING 61805 C3
601 Kč
29 50233041000
PAIR OF WASHERS M 6 NORDLOCK
39 Kč
30 78034003100
SHIFTING FORK 1ST/3RD GEAR
945 Kč
41 54634032100
SHIFTING LEVER SPRING 250
52 Kč
42 54634031050
BOLT 6X25 FOR SHIFT LEVER
86 Kč
43 54634131000
STEP PLATE FOR SHIFT LEVER 250
494 Kč

Další schémata

BALANCER SHAFT BALANCER SHAFT CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER CYLINDER CYLINDER HEAD CYLINDER HEAD DIAGNOSTIC TOOL DIAGNOSTIC TOOL ELECTRIC STARTER ELECTRIC STARTER ENGINE CASE ENGINE CASE IGNITION SYSTEM IGNITION SYSTEM LUBRICATING SYSTEM LUBRICATING SYSTEM SECONDARY AIR SYSTEM SAS SECONDARY AIR SYSTEM SAS SHIFTING MECHANISM SHIFTING MECHANISM THROTTLE BODY THROTTLE BODY TIMING DRIVE TIMING DRIVE TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT VALVE DRIVE VALVE DRIVE WATER PUMP WATER PUMP

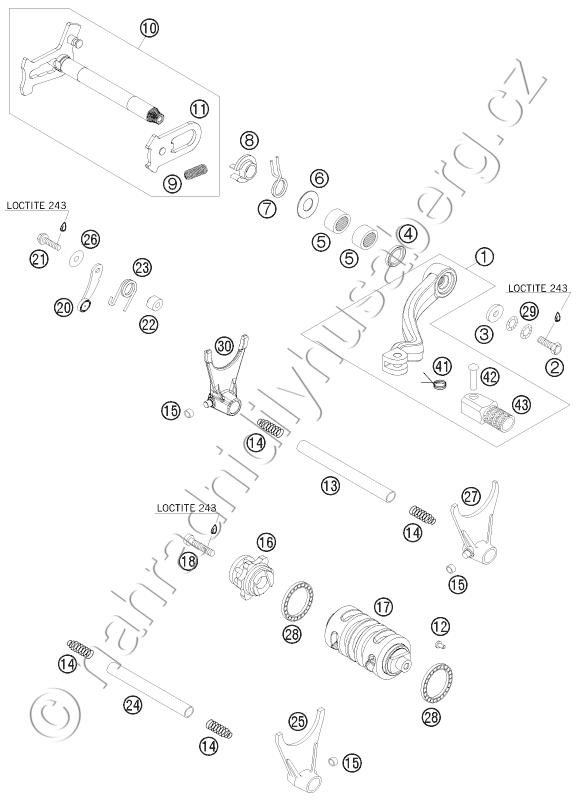

SHIFTING MECHANISM

Zvětšit schéma SHIFTING MECHANISM
SHIFTING MECHANISM
