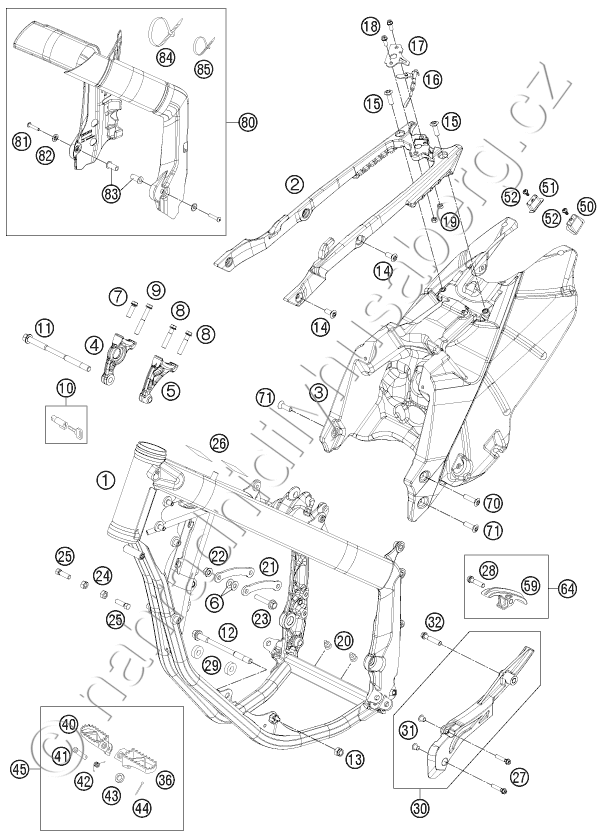

Díly pro FRAME
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 81203001200DA FRAME \'\'812K1\'\' YELLOW |
41 396 Kč | |
| 2 | 81203003000 SUB FRAME UPPER PART 2009 |
2 559 Kč | |
| 3 | 8120300200030 SUB FRAME 450 FE 2012 |
9 434 Kč | |
| 4 | 81203005010 REINFORCING B. R/S |
945 Kč | |
| 5 | 81203005020 REINFORCING B. L/S |
945 Kč | |
| 6 | 77003013050 WASHER 8,5X18X1 INOX |
50 Kč | |
| 7 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
| 8 | 0025080406 HH COLLAR SCREW M8X40 TX40 |
33 Kč | |
| 9 | 0025080556 HH COLLAR SCREW M8X55 TX40 |
33 Kč | |
| 10 | 78003035000 STEERING HEAD LOCK 08 |
773 Kč | |
| 11 | 58403014000 ENGINE BRAC.SCREW M10X160 WS13 |
326 Kč | |
| 12 | 83003014000 ENGINE BRACKET SCREW M10X138 |
462 Kč | |
| 13 | 54310086100 SELF LOCKING NUT M10 CU WS=14 |
20 Kč | |
| 14 | 0019080206 COUNTER-SUNK SCREW ISA45 M8X20 |
33 Kč | |
| 15 | 0019080266S COUNTER-SUNK SCREW ISA45 M8X26 |
33 Kč | |
| 16 | 81207050010 OPERATING CABLE INCL. HINGE |
650 Kč | |
| 17 | 81207050030 COVER PLATE SEAT LOCK |
98 Kč | |
| 18 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 19 | 0934060003 HEX NUT DIN 934 M6 |
17 Kč | |
| 20 | 54403135000 PLASTIC CAP SFL10 |
29 Kč | |
| 21 | 81203013000 REINFORCING BRACKET FE 450 |
289 Kč | |
| 22 | 54310086200 SELF LOCKING NUT M8 10.9 |
21 Kč | |
| 23 | 56530079000S HH COLLAR SCREW M8X44 WS13 |
58 Kč | |
| 24 | 0934080003 HEXAGON NUT DIN0934-M 8 |
18 Kč | |
| 25 | 59001037000 SPECIAL SCREW M8X26 WS=10 |
53 Kč | |
| 26 | 50307012000 ADH. FOIL TRANSP. 80X80 MM 04 |
39 Kč | |
| 27 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 28 | 0025080306 HH COLLAR SCREW M8X30 TX40 |
32 Kč | |
| 29 | 81203001013 DISTANCE BUSHING ENGINE/FRAME |
47 Kč | |
| 30 | 81203096000 CHAIN GUARD ´09 |
376 Kč | |
| 31 | 45239060050 COLLAR BUSHING 6,3X8X13X9,5 |
77 Kč | |
| 36 | 78003040050 FOOTREST L/S 08 |
858 Kč | |
| 40 | 78003041050 FOOTREST R/S 08 |
858 Kč | |
| 41 | 54803044000 BOLT FOR FOOT PED 03 |
203 Kč | |
| 42 | 54603041000 FOOTREST SPRING L/S & R/S |
71 Kč | |
| 43 | 0125100003 WASHER DIN 125 A 10.5 |
13 Kč | |
| 44 | 0094032250 PIN DIN 0094-3.2X25 NIRO |
5 Kč | |
| 45 | 5030314013390 FOOTPEG L.+R. CPL. 03 |
2 646 Kč | |
| 50 | 81203002050 CAP L/S |
73 Kč | |
| 51 | 81203002060 CAP R/S |
73 Kč | |
| 52 | 0081050121 EJOT PT SCREW K50X12 |
21 Kč | |
| 59 | 77303053000 CHAIN SLIDING PIECE BELOW 07 |
195 Kč | |
| 64 | 77303053010 CHAIN SLIDING KIT BELOW CPL 07 |
188 Kč | |
| 70 | 0019080266S COUNTER-SUNK SCREW ISA45 M8X26 |
33 Kč | |
| 71 | 0019080306S COUNTER-SUNK SCREW ISA45 M8X30 |
33 Kč | |
| 80 | 81203094000 FRAME PROTECTION SET |
Na dotaz | 1 |
| 81 | 0738050250 COU.SUNK SCR. AH ISO7380 M5X25 |
15 Kč | |
| 82 | 54803092060 BUSH F. FRAME PROTECTION 03 |
73 Kč | |
| 83 | 54803092050 BLIND PLUG-IN NUT M5 WN 22A 03 |
66 Kč | |
| 84 | 44011076305 CABLE TIE 300/4,8MM BLACK |
10 Kč | |
| 85 | 44011076140 CABLE TIE 140/2,5MM BLACK |
10 Kč |
