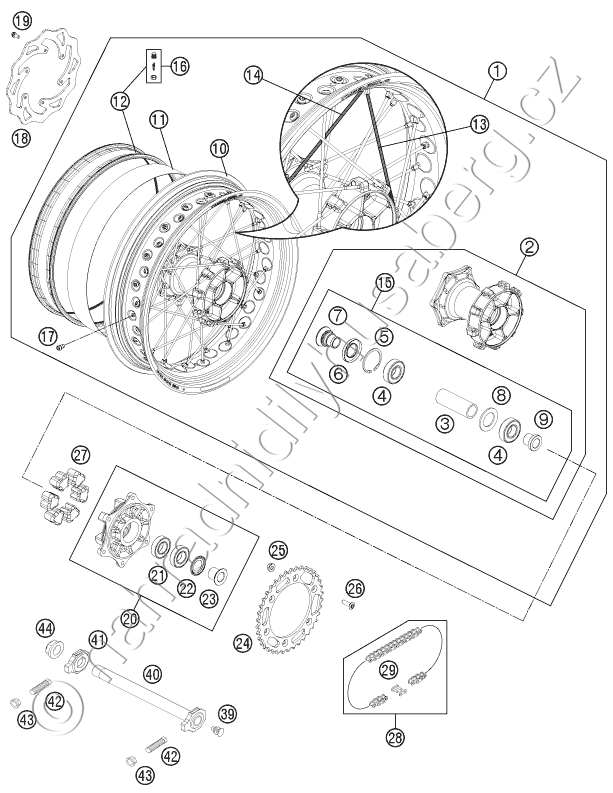

Díly pro REAR WHEEL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 8121020104430 REAR WHEEL CPL. 4,25X17\'\' TL |
23 259 Kč | |
| 2 | 81210010044 REAR WHEEL HUB DAMPED CPL. |
7 198 Kč | |
| 3 | 81210011000 BEARING DISTANCE TUBE |
507 Kč | |
| 4 | 0625062052 GR.BALL BEAR. 6205-2RSHC3HMTF7 |
442 Kč | |
| 5 | 0472052200 CIRCLIP DIN0472-52X2 |
29 Kč | |
| 6 | 0760305271 SHAFT SEAL RING 30X52X7 |
63 Kč | |
| 7 | 81210016000 SPACER BUSHING |
483 Kč | |
| 8 | 60010015000 SPACER RING 03 |
220 Kč | |
| 9 | 54610416500 BUSHING FOR REAR DAMPED HUB 06 |
377 Kč | |
| 10 | 8121027000030 RIM 4,25X17\'\' TL |
10 640 Kč | |
| 11 | 75010073000 RIM BAND 17\'\'X 5.00\'\' |
464 Kč | |
| 12 | 60210177044 GASKET RUBBER 17\'\' CPL. W.VALVE |
1 187 Kč | |
| 13 | 75010073196 SPOKE M4,5X196-16G 17\'\' INOX |
63 Kč | |
| 14 | 81210171181 SPOKE M4,5X0,75X181 |
94 Kč | |
| 15 | 81210015000 REAR WHEEL REP. KIT |
1 645 Kč | |
| 16 | 81210076000 VALVE CPL. |
239 Kč | |
| 17 | 81210072100 SPOKE NIPPLE QUADRAX M4,5 |
45 Kč | |
| 18 | 77310060000 BRAKE DISC REAR 220 |
2 518 Kč | |
| 19 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 |
20 Kč | |
| 20 | 5831005024491 SPROCKET SUPPORT CPL. |
3 581 Kč | |
| 21 | 0625060058 GR.BALL BEAR.6005 DDU2CG23S6NM |
244 Kč | |
| 22 | 58310018000 SEAL WASHER 6005AV 06 |
116 Kč | |
| 23 | 58310417200 BUSH. F.SPROCKETSUPPORT 06 |
340 Kč | |
| 24 | 58310051038 REAR SPROCKET 38-T |
1 051 Kč | |
| 24 | 58310051042 REAR SPROCKET 42-T |
1 051 Kč | |
| 24 | 58310151040 REAR SPROCKET 40-T |
1 051 Kč | |
| 24 | 58310151048 REAR SPROCKET 48-T |
1 051 Kč | |
| 24 | 58310151050 REAR SPROCKET 50-T |
1 051 Kč | |
| 24 | 58310151052 REAR SPROCKET 52-T |
1 051 Kč | |
| 24 | 7771015104501 SPROCKET 45-T |
1 051 Kč | |
| 24 | 7771015104901 SPROCKET 49-Z |
1 051 Kč | |
| 24 | 7771015105101 SPROCKET 51-Z NATURE |
1 051 Kč | |
| 25 | 06923080003 HEX NUT EN 1661 M8 WS13 |
23 Kč | |
| 26 | 0019080266S COUNTER-SUNK SCREW ISA45 M8X26 |
33 Kč | |
| 27 | 54610459000 RUBBER DAMPING BLOCK \'91 |
119 Kč | |
| 28 | 78010167118 CHAIN DID 118 ROLLS |
2 577 Kč | |
| 29 | 78010166100 RIVETING LINK FOR 78010167118 |
199 Kč | |
| 39 | 50210086000 COVERING CAP SFL16 |
33 Kč | |
| 40 | 77310085044 WHEEL SPINDLE RE. CPL.265MM 07 |
1 375 Kč | |
| 41 | 50310084000 CHAIN TENSIONER R/S 2000 |
307 Kč | |
| 42 | 50304040100 SCREW M10X1.25X50 WS10 |
65 Kč | |
| 43 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 |
36 Kč | |
| 44 | 50310099000 HEXAGON NUT M20X1,5 \'98 |
138 Kč |
