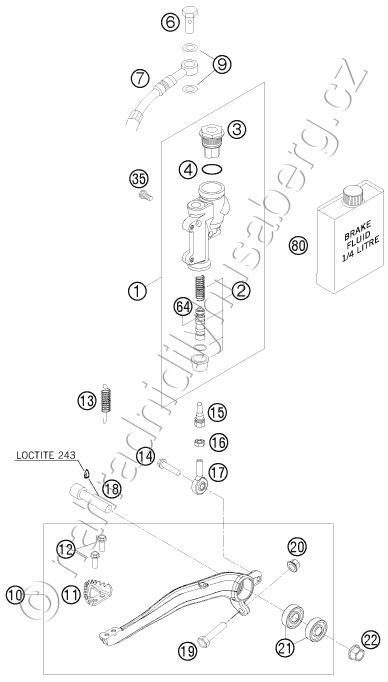

Díly pro REAR BRAKE CONTROL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77013060044 REAR BRAKE CYLINDER CPL.SX 09 |
2 609 Kč | |
| 2 | 54813061200 REPAIR KIT PISTON 13MM 06 |
926 Kč | |
| 3 | 54813062100 REAR BRAKE CYL. COVER CPL. 04 |
974 Kč | |
| 4 | 54813063000 FOOT-BRAKE CYL. GASKET SX 03 |
146 Kč | |
| 6 | 54813020100 BANJO BOLT M10X1X19 BLACK |
169 Kč | |
| 7 | 54813070100 BRAKE HOSE REAR 655MM 15 |
1 445 Kč | |
| 9 | 0603100141 SEALING RING DIN 7603 10X14X1 |
27 Kč | |
| 10 | 78013050044 FOOT BRAKE LEVER CPL. |
2 194 Kč | |
| 11 | 54813051000 STEP PLATE FOR BRAKE LEVER |
153 Kč | |
| 12 | 0025050126 HH COLLAR SCREW M5X12 TX30 |
36 Kč | |
| 13 | 54603062100 RETURN SPRING FOR BRAKE LEVER |
69 Kč | |
| 14 | 0025060206S HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 15 | 54813056000 PUSH ROD L=28MM 03 |
313 Kč | |
| 16 | 0985060003 SELF LOCK. NUT DIN0985-M 6 |
20 Kč | |
| 17 | 54813055100 JOINT HEAD CMP6 |
626 Kč | |
| 18 | 0032100406S AH-COLLAR SCREW M10X40 ISA45 |
36 Kč | |
| 19 | 59001037000 SPECIAL SCREW M8X26 WS=10 |
53 Kč | |
| 20 | 46030045000 FLANGED NUT M8 WS10 |
87 Kč | |
| 21 | 0625060002 DEEP GROOVE BALL BEARING SKF 6000-2RS1 |
169 Kč | |
| 22 | 54630044000 COLLAR NUT M10 WS=13 |
29 Kč | |
| 35 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 64 | 54813064200 BELLOWS FOR REPAIR KIT 06 |
244 Kč | |
| 80 | 00062030000 BRAKE FLUID DOT5.1 0,25L |
358 Kč |
