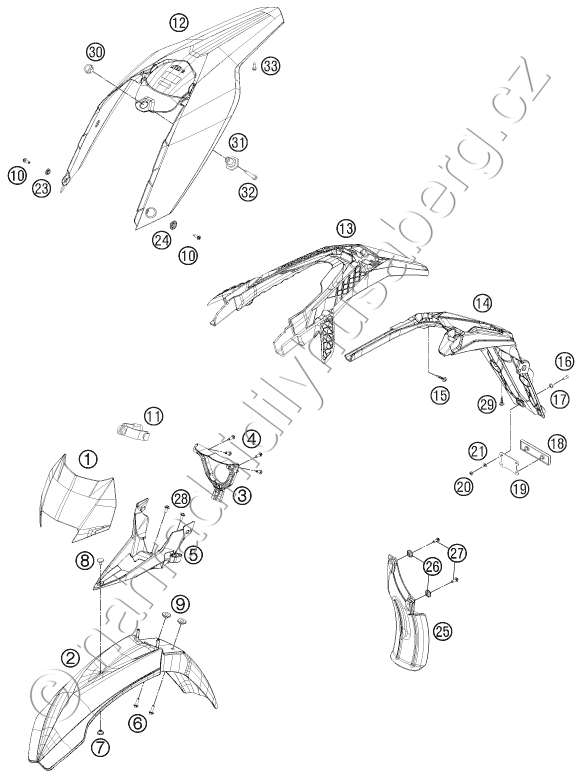

Díly pro MASK, FENDERS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 8120800110068 HEAD LIGHT MASK BLUE |
717 Kč | |
| 2 | 8120801000068 FRONT FENDER 2009 |
667 Kč | |
| 3 | 81208003000 HEAD LIGHT SUPPORT 2009 |
110 Kč | |
| 4 | 0081050181 SCREW FOR PLASTIC K50X18 T20 |
20 Kč | |
| 5 | 8120800910030 FENDER BRACE BLACK |
445 Kč | |
| 6 | 0024060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 7 | 50308009051 NUT FENDER BRACE M8 WS=17 |
106 Kč | |
| 8 | 50308009050 SCREW FEND.BRACE M8X9 WS=17 |
106 Kč | |
| 9 | 54808020000 SPACER BUSHING 03 |
73 Kč | |
| 10 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 11 | 50211086000 MASK RUBBER UFO WP \'95 |
161 Kč | |
| 12 | 7800801300028 REAR PART EXC WHITE 11 |
1 203 Kč | |
| 13 | 78008016000 NUMBER PL. CARRIER TOP PART 08 |
510 Kč | |
| 14 | 78008016050 NUMBER PL. CARRIER LOW PART 08 |
435 Kč | |
| 15 | 0017060305 SPECIAL SCREW K60X30 WS=6 |
21 Kč | |
| 16 | 0966050203 OVAL HEAD SCREW DIN0966-M 5X20 |
17 Kč | |
| 17 | 40006006000 WASHER 6MM |
15 Kč | |
| 18 | 58412080400 REAR REFLECTOR RED |
127 Kč | |
| 19 | 58412080050 BRACKET FOR REFLECTOR |
84 Kč | |
| 20 | 0985050003 SELF LOCKING NUT DIN0985-M 5 |
21 Kč | |
| 21 | 0125050003 WASHER DIN0125-A 5,3 |
17 Kč | |
| 23 | 79608052000 BUSH 6X11X16X5 MM |
52 Kč | |
| 24 | 77306001030 COLLAR BUSHING 4,5/12,6/23 |
106 Kč | |
| 25 | 77306010000 FENDER FOR FILTER BOX |
263 Kč | |
| 26 | 77304066050 CHAIN SLIDER BUSHING |
39 Kč | |
| 27 | 0017060206 SCREW F. PLASTIC K60X20AL SW6 |
34 Kč | |
| 28 | 0024060156 HH COLLAR SCREW M6X15 TX30 |
29 Kč | |
| 29 | 0017060205 SCREW FOR PLASTIC K60X20 SW6 |
29 Kč | |
| 30 | 50314057050 COLLAR NUT M12X1/WS17 H=5MM |
106 Kč | |
| 31 | 54807048000 BUSHING FOR SEAT FASTENING 03 |
171 Kč | |
| 32 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 33 | 0025050206 HH COLLAR SCREW M5X20 TX30 |
20 Kč |
