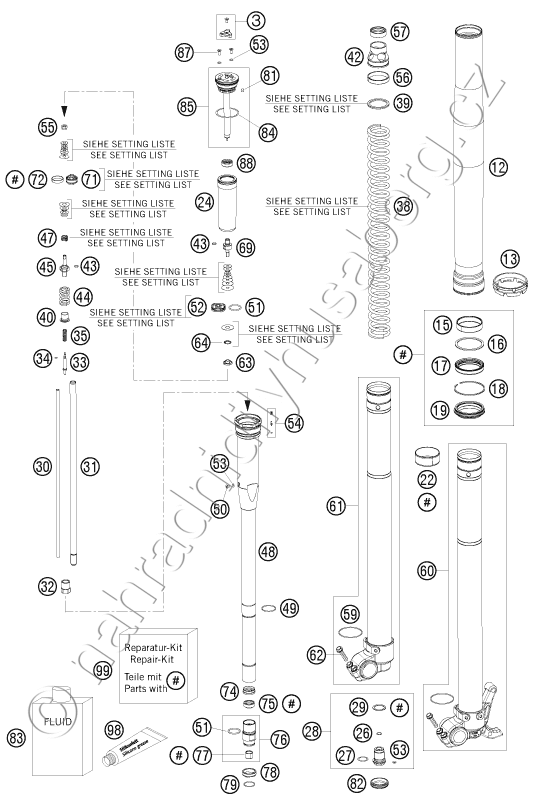

Díly pro FRONT FORK DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 3 | 48600811S ADJUSTING KNOB + SCREW |
65 Kč | |
| 12 | 48600736 OUTER TUBE L577 D54/60MM 2L |
8 770 Kč | |
| 13 | 48600698 FORK PROTECTION RING 08 |
73 Kč | |
| 15 | 48601009 GUIDING BUSH 48X52X12 R11 |
219 Kč | |
| 16 | 48600013 SUPPORT RING 50 X 57,6 X 1,5 |
118 Kč | |
| 17 | 48601414 OELSEALRING 48X57,9X11,4 |
377 Kč | |
| 18 | 48600070 LOCK WASHER SB58 |
44 Kč | |
| 19 | 48601178 DUST SEAL DL48X58,4X5,7 RED |
340 Kč | |
| 22 | 48601008 GUIDING BUSH 47X49X20 R11 |
219 Kč | |
| 24 | 48600281 MEMBRANE |
340 Kč | |
| 26 | 48600301 O-RING NBR 9,5X1,5 |
61 Kč | |
| 27 | 46810811 O-RING NBR 17X2 PA |
55 Kč | |
| 28 | 48600280E SCREW BUSH M20X1 L=33 CPL. |
716 Kč | |
| 29 | 48600275 COPPER WASHER 20,5X26X1 |
124 Kč | |
| 30 | 48600269 ADJUSTING TUBE L=371 |
393 Kč | |
| 31 | 48600464 PISTON ROD SXS 2005 |
1 710 Kč | |
| 32 | 48600459 COUNTERNUT M12X1 WS17 |
332 Kč | |
| 33 | 48600887 REBOUND NEEDLE SX |
69 Kč | |
| 34 | 48600298 O-RING 2X1,5 NBR |
60 Kč | |
| 35 | 48600444 REBOUND SPRING C=4N/MM |
68 Kč | |
| 38 | 91410020S SPRING 4,8N/MM SET D=5,25 MM |
3 382 Kč | |
| 38 | 91410027S SPRING 4,4 N/MM SET D=5,1MM |
3 382 Kč | |
| 38 | 91410028S SPRING 4,6 N/MM SET D=5,1MM |
3 382 Kč | |
| 39 | 48600456 SPACER 43X35X2,5 |
340 Kč | |
| 39 | 48600457 SPACER 43X35X5 |
61 Kč | |
| 39 | 48600458 SPACER 43X35X1,5 |
340 Kč | |
| 40 | 48600525 GUIDING BUSH REBOUND SPRING |
95 Kč | |
| 42 | 48600520 SPRING SUPPORT |
692 Kč | |
| 43 | 48600299 O-RING 6X1,2 NBR |
60 Kč | |
| 44 | 48600578 SPRING REB. L=32 C=37 DI=13,9 |
134 Kč | |
| 45 | 48600576 PISTON ROD REBOUND |
243 Kč | |
| 47 | 48600382 SHUTTLE VALVE SPRING C=0,4 |
52 Kč | |
| 48 | 48600519E3 MEMBRANE HOLDER WP |
6 574 Kč | |
| 49 | 48600512 LOCK WASHER D=25,5 |
53 Kč | |
| 50 | 48600542 AH SCREW M4X6 |
34 Kč | |
| 51 | 46811499 O-RING NBR 21X2 |
34 Kč | |
| 52 | 48600047 PISTON COMPRESSION D=27,9 |
1 007 Kč | |
| 53 | 50180222 O-RING NBR 4X1,5 |
29 Kč | |
| 54 | 48600977S PIN KIT |
634 Kč | |
| 55 | 40540486 NUT M6X0,5 REBOUND |
57 Kč | |
| 56 | 48600744 GUIDE RING 44 X39 |
95 Kč | |
| 57 | 48600577 RING SPRING-SUPPORT |
138 Kč | |
| 59 | 48600113 WASHER 32X42X2,5 |
114 Kč | |
| 60 | 48600863SA AXLE CLAMP LEFT + TUBE CPL. |
10 887 Kč | |
| 61 | 48600864SA AXLE CLAMP RIGHT + TUBE CPL. |
10 887 Kč | |
| 62 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
| 63 | 48600885 NUT VALVE M6X0,5 LH=1,2 |
69 Kč | |
| 64 | 48600202 SPRING CHECK VALVE D=0,7 |
29 Kč | |
| 69 | 48600509 PISTON ROD COMPRESSION |
352 Kč | |
| 71 | 48600575 PISTON REBOUND SX 2007 |
453 Kč | |
| 72 | 48600455 PISTON RING 5X1X68 |
340 Kč | |
| 74 | 48600296 RING D=23,45X2,65 |
228 Kč | |
| 75 | 48600829 SHAFT SEAL RING 12MM |
95 Kč | |
| 76 | 48600760S SCREW SLEEVE M24,5X1 CPL |
262 Kč | |
| 77 | 48600430 DU BUSH FOR PISTON ROD |
66 Kč | |
| 78 | 48600709 CHECK VALVE STOP |
318 Kč | |
| 79 | 48600446 LOCK WASHER D=20 |
61 Kč | |
| 81 | 15080017 SILICON CAP |
41 Kč | |
| 82 | 48600692 RUBBER CAP D=26,4 |
92 Kč | |
| 83 | 48601166S1 FORK OIL SAE4 5L |
2 949 Kč | |
| 84 | 40140024 O-RING NBR 43X2 |
77 Kč | |
| 85 | 48600516E1 SCREW CAP L=125 |
2 181 Kč | |
| 87 | 48600526 SCREW M4X10 |
31 Kč | |
| 88 | 48600514 MEMBRANE SLEEVE |
68 Kč | |
| 98 | T14034 FUCHS GREASE IPR (250G) |
1 280 Kč | |
| 99 | R14053 REPAIR KIT FORK |
1 921 Kč |
