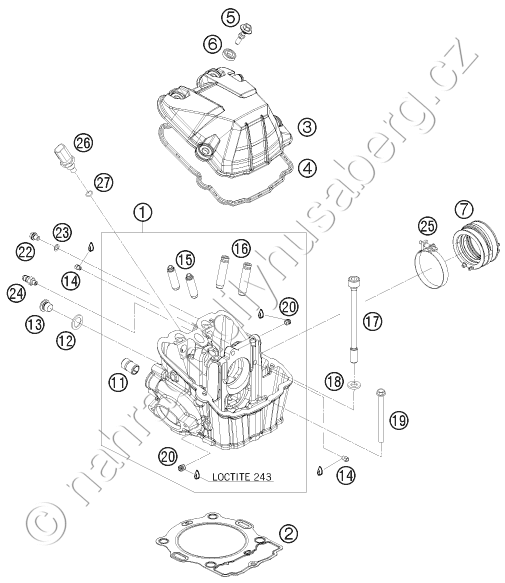

Díly pro CYLINDER HEAD
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 81236020044 CYLINDER HEAD CPL. |
15 292 Kč | |
| 2 | 78830036000 CYLINDER HEAD GASKET D=100 08 |
1 533 Kč | |
| 3 | 7803605200033 VALVE COVER BLACK MATT |
793 Kč | |
| 4 | 78036053100 VALVE COVER GASKET |
138 Kč | |
| 5 | 78036054100 VALVE COVER SCREW |
122 Kč | |
| 6 | 75036052010 DECOUPLING ELEMENT |
42 Kč | |
| 7 | 81236044100 CONNECTION RUBBER EFI |
640 Kč | |
| 11 | 58030010200 SCREW IN NOZZLE M20X1,5 |
166 Kč | |
| 12 | 58038022000 CU-SEAL RING DIN7603-12X18X1,5 |
28 Kč | |
| 13 | 78036024000 PLUG SCREW SAS M12X1,5 |
122 Kč | |
| 14 | 60030063070 OIL JET 70 M5 |
124 Kč | |
| 15 | 78036026001 VALVE GUIDE EXHAUST |
639 Kč | |
| 16 | 78036025001 VALVE GUIDE INTAKE |
639 Kč | |
| 17 | 78630044000 CYLINDER HEAD BOLT M10X1.25 L=138 |
169 Kč | |
| 18 | 77336089010 WASHER 19X10.5X2.5 |
69 Kč | |
| 19 | 0025060856 HH COLLAR SCREW M6X85 TX30 |
29 Kč | |
| 20 | 59030296000 SCREW PLUG |
151 Kč | |
| 22 | 0025060086 HH COLLAR SCREW M6X8 TX30 |
29 Kč | |
| 23 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 24 | 58336020290 VACUUM CONNECTION M6X1 ALU AH |
135 Kč | |
| 25 | 59030061200 CLAMP GEMI 56MM W. STOP |
169 Kč | |
| 26 | 60011252000 TEMPERAT.-SENSOR WATER LC8 02 |
552 Kč | |
| 27 | 0770100020 O-RING 10.00X2.00 SILICONE |
18 Kč |
