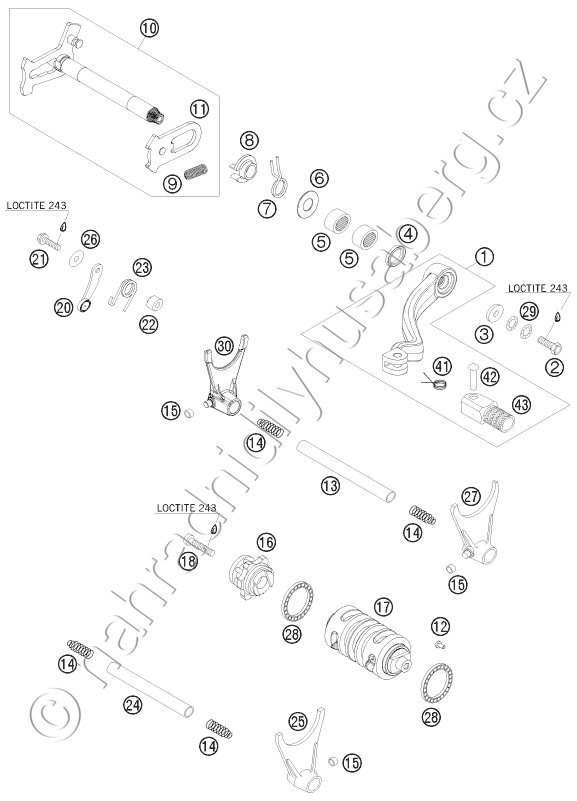

Díly pro SHIFTING MECHANISM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 54734031000 SHIFT LEVER CPL. 2-STROKE 2001 |
1 493 Kč | |
| 2 | 59009062016 SPECIAL SCREW M6X16 WS=8 10.9 |
31 Kč | |
| 3 | 50232050001 STEEL WASHER 6,4X17X3 |
37 Kč | |
| 4 | 0760142460 RADIAL SHAFT SEAL 14X24X6 B |
77 Kč | |
| 5 | 54632095000 NEEDLE SLEEVE HK 1412 14X20X12 |
97 Kč | |
| 6 | 54634050000 STOP DISK 14X30X1 |
29 Kč | |
| 7 | 54634014100 RETURN SPRING 2,2MM \'95 |
79 Kč | |
| 8 | 54634020000 SPRING GUIDE |
116 Kč | |
| 9 | 56534013100 TENSIONING SPRING 0,8MM |
44 Kč | |
| 10 | 78034005233 SHIFT SHAFT CPL. ASSY |
2 050 Kč | |
| 11 | 61234008044 SLIDING PLATE |
150 Kč | |
| 12 | 0018050103 INT. TORX OVAL HEAD M 5X10 8.8 |
23 Kč | |
| 13 | 78034020000 SHIFT RAIL 11,8X101,5 |
222 Kč | |
| 14 | 58038023200 PRESSURE SPRING 0,9MM |
52 Kč | |
| 15 | 50334018100 SHIFTING ROLLER 6X8X5,2 |
58 Kč | |
| 16 | 78134015044 SHIFT DRUM LOCATING ALU CPL. |
631 Kč | |
| 17 | 78034012000 SHIFT ROLLER |
1 274 Kč | |
| 18 | 0012060303 AH SCREW DIN6912 M6X30 8.8 |
28 Kč | |
| 20 | 77034024044 LOCKING LEVER CPL. 08 |
324 Kč | |
| 21 | 0025050206 HH COLLAR SCREW M5X20 TX30 |
20 Kč | |
| 22 | 54634052300 SLEEVE FOR LOCKING LEVER |
63 Kč | |
| 23 | 60034023000 ARRESTING LEVER SPRING 03 |
47 Kč | |
| 24 | 78034019000 SHIFT RAIL 11,8X85 |
178 Kč | |
| 25 | 59034001100 SHIFTING FORK 5./6. GEAR |
684 Kč | |
| 26 | 0349000050 WASHER DIN7349-5X15X2 |
17 Kč | |
| 27 | 59034002100 SHIFTING FORK 2./4. GEAR |
684 Kč | |
| 28 | 0625618050 BALL BEARING 61805 C3 |
601 Kč | |
| 29 | 50233041000 PAIR OF WASHERS M 6 NORDLOCK |
39 Kč | |
| 30 | 78034003100 SHIFTING FORK 1ST/3RD GEAR |
945 Kč | |
| 41 | 54634032100 SHIFTING LEVER SPRING 250 |
52 Kč | |
| 42 | 54634031050 BOLT 6X25 FOR SHIFT LEVER |
86 Kč | |
| 43 | 54634131000 STEP PLATE FOR SHIFT LEVER 250 |
494 Kč |
