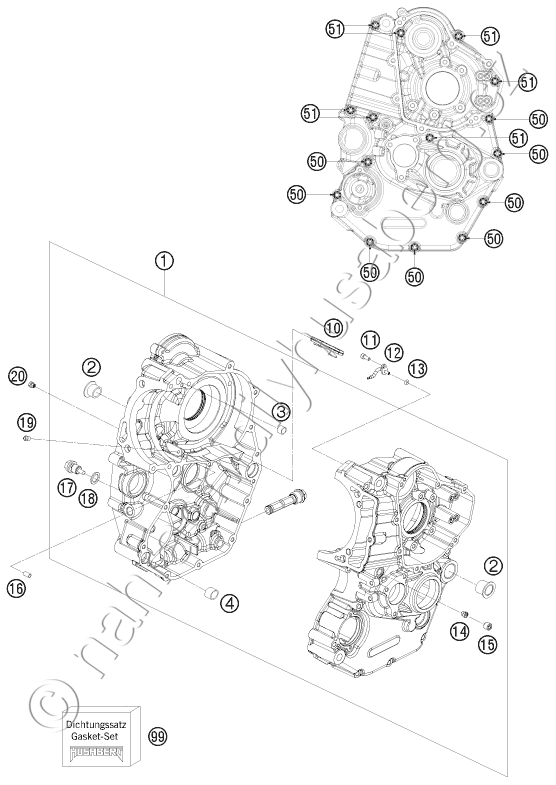

Díly pro ENGINE CASE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 81230000133 ENGINE CASE CPL.W. BEARINGS 09 |
33 472 Kč | |
| 2 | 75030010000 CASE BUSH |
150 Kč | |
| 3 | 51030026100 DOWEL 17 X 13 X 12 |
89 Kč | |
| 4 | 54830027000 DOWEL 21X12 03 |
103 Kč | |
| 10 | 81205027000 VALVE |
339 Kč | |
| 11 | 0912040103 AH.SCREW DIN0912-M 4X10 |
20 Kč | |
| 12 | 81230064000 OIL JET ANGLED 70 |
212 Kč | |
| 13 | 0770035020 O-RING 3,5X2,00 NBR |
4 Kč | |
| 14 | 59030054000 JET 60 DELLORTO M6X0,75 |
106 Kč | |
| 15 | 0906100100 PIPE PLUG DIN 906 M10X1 |
71 Kč | |
| 16 | 59030023000 DOWEL SLEEVE 6X8X11.5 |
82 Kč | |
| 17 | 58030021100 OILDRAIN PLUG WITH MAGNET |
196 Kč | |
| 18 | 58038022000 CU-SEAL RING DIN7603-12X18X1,5 |
28 Kč | |
| 19 | 60030063070 OIL JET 70 M5 |
124 Kč | |
| 20 | 57031523145 MAIN JET 145 |
102 Kč | |
| 50 | 0025060656 HH COLLAR SCREW M6X65 TX30 |
29 Kč | |
| 51 | 0025060756 HH COLLAR SCREW M6X75 TX30 |
29 Kč | |
| 99 | 81230099000 GASKET KIT HUSABERG |
4 820 Kč |
