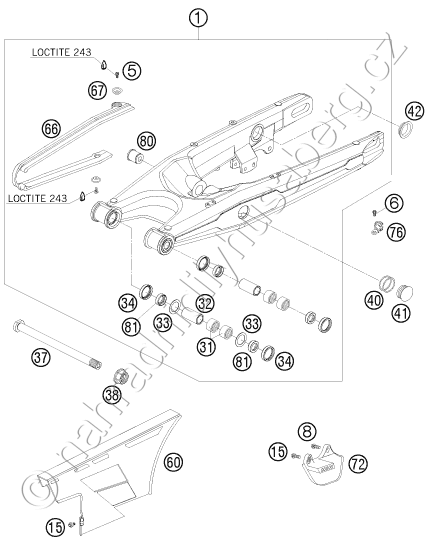

Díly pro SWING ARM
Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
---|---|---|---|
1 | 80004030244 SWINGARM CPL. HUSABERG 05 |
Na dotaz | 1 |
5 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
6 | 0025050126 HH COLLAR SCREW M5X12 TX30 |
36 Kč | |
8 | 0024060136 HH COLLAR SCREW M6X13 TX30 |
29 Kč | |
15 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 |
29 Kč | |
31 | 58033097000 NEEDLE BEARING HK 2216 |
148 Kč | |
32 | 80004032100 BUSH. SLEEVE SWINGARM BEAR. 05 |
219 Kč | |
33 | 54603036000 STOP DISK 22,2X31,7X1 |
39 Kč | |
34 | 0760253270 RADIAL SHAFT SEAL 25X32X7 |
60 Kč | |
37 | 80004037100 SWINGARM BOLT L=237MM |
935 Kč | |
38 | 54804038000 SELF LOCK.NUT M16X1,5 WS=19 03 |
246 Kč | |
40 | 0770253240 O-RING 25,30X2,40 NBR70 |
18 Kč | |
41 | 80004041000 CLOSING COVER SWINGARM 04 |
220 Kč | |
42 | 58404041100 CLOSING COVER ROUND 03 |
25 Kč | |
60 | 80004060100 CHAIN GUARD 05 |
560 Kč | |
66 | 80004066000 CHAIN SLIDING GUARD 04 |
449 Kč | |
67 | 46104066050 BUSH FOR CHAINSLIDER GUARD 02 |
57 Kč | |
72 | 80004070000 CHAIN GUIDE FS 2005 |
324 Kč | |
76 | 54611076100 RETAIN.CLAMP FOR BRAKE HOSE\'96 |
29 Kč | |
80 | 80004080100 BUSHING SUPPORT MONOSH. 2005 |
294 Kč | |
81 | 80004034000 BUCKET F. SHAFT SEAL RING 04 |
108 Kč |
