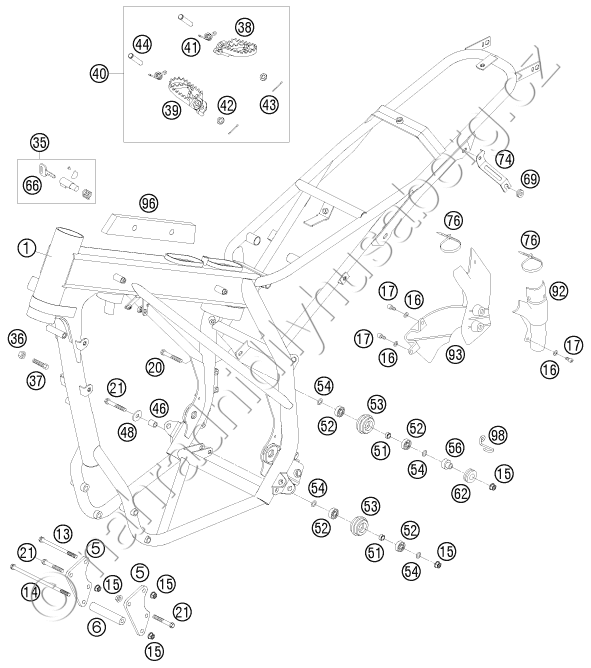

Díly pro FRAME
Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
---|---|---|---|
1 | 8000300110030 FRAME FE/FS-EU BLACK (HB04) |
46 235 Kč | |
5 | 80003005000 ENGINE MOUNTING 04 |
655 Kč | |
6 | 80003006000 SPACER ENGINE MOUNT. L=87MM 04 |
268 Kč | |
13 | 80003013000 ENGINE BRACKET SCREW M8X110 04 |
462 Kč | |
14 | 80003014000 ENGINE BRACKET SCREW M8X180 04 |
413 Kč | |
15 | 54310086200 SELF LOCKING NUT M8 10.9 |
21 Kč | |
16 | 0125050003 WASHER DIN0125-A 5,3 |
17 Kč | |
17 | 0912050103 AH SCREW DIN0912-M 5X10 |
20 Kč | |
20 | 0025080556 HH COLLAR SCREW M8X55 TX40 |
33 Kč | |
21 | 0025080506 HH COLLAR SCREW M8X50 TX40 |
33 Kč | |
35 | 78003035000 STEERING HEAD LOCK 08 |
773 Kč | |
36 | 0934080003 HEXAGON NUT DIN0934-M 8 |
18 Kč | |
37 | 59001037000 SPECIAL SCREW M8X26 WS=10 |
53 Kč | |
38 | 78003040050 FOOTREST L/S 08 |
858 Kč | |
39 | 78003041050 FOOTREST R/S 08 |
858 Kč | |
40 | 5030314013390 FOOTPEG L.+R. CPL. 03 |
2 646 Kč | |
41 | 54603041000 FOOTREST SPRING L/S & R/S |
71 Kč | |
42 | 0125100003 WASHER DIN 125 A 10.5 |
13 Kč | |
43 | 0094032250 PIN DIN 0094-3.2X25 NIRO |
5 Kč | |
44 | 54803044000 BOLT FOR FOOT PED 03 |
203 Kč | |
46 | 80013046100 DISTANCE SPACER 22X8,2X16MM 05 |
98 Kč | |
48 | 0021080003 WASHER DIN9021-A 8,4 |
17 Kč | |
51 | 74003021000 BUSHING 8.2 X 12 X 6 |
69 Kč | |
52 | 0625006087 GROOVED BALL BEAR. 608 2RS C3 |
244 Kč | |
53 | 52303053100 CHAIN ROLL D=35MM 125-380 \'99 |
61 Kč | |
54 | 36003014000 LOCK WASHER 8MM |
15 Kč | |
56 | 80011056100 DISTANCE SPACER 8MM 04 |
76 Kč | |
62 | 41001052000 RUBBER SLEEVE D=12MM |
57 Kč | |
66 | 40011166200 KEY BLANK BLACK \'\'T\'\' GRIP |
212 Kč | |
69 | 58214069051 RUBBER GROMMET 16X10.8X3 |
61 Kč | |
74 | 80008014100 BRACKET FOR REAR PART 2005 |
313 Kč | |
76 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
92 | 8000309200030 FRAME PROTECTION L/S BLACK 04 |
154 Kč | |
93 | 8000309300030 FRAME PROTECTION R/S BLACK 04 |
177 Kč | |
96 | 80006096000 TAB FOR FILTER PROTECTION 04 |
Na dotaz | 2 |
98 | 80013094000 BRAKE HOSE GUIDE LOWER |
159 Kč |
