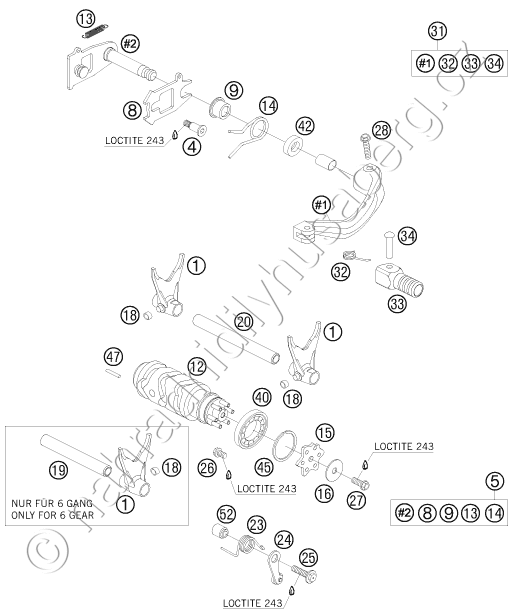

Díly pro SHIFTING MECHANISM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 80034001000 SHIFTING FORK 03 |
1 251 Kč | |
| 4 | 80034014050 SPECIAL SCREW RETAINING SPRING |
150 Kč | |
| 5 | 80034005000 SHIFTING SHAFT CPL. 03 |
2 845 Kč | |
| 8 | 80034005000 SHIFTING SHAFT CPL. 03 |
2 845 Kč | |
| 9 | 80034009000 SPRING GUIDE 03 |
223 Kč | |
| 12 | 80034012000 SHIFTING DRUM 03 |
2 381 Kč | |
| 13 | 80034013000 TENSIONING SPRING 03 |
52 Kč | |
| 14 | 80034014000 RETAINING SPRING 03 |
69 Kč | |
| 15 | 80034015000 POSITIONING STAR 03 |
600 Kč | |
| 16 | 80034015150 WASHER POS. STAR 6,4X24X1,2 |
15 Kč | |
| 18 | 50334018100 SHIFTING ROLLER 6X8X5,2 |
58 Kč | |
| 19 | 80034019000 SHIFT RAIL MAIN SHAFT 03 |
Na dotaz | 1 |
| 20 | 80034020000 SHIFT RAIL COUNTERSHAFT 03 |
Na dotaz | 1 |
| 23 | 80034023000 SPRING FOR LOCKING LEVER 03 |
87 Kč | |
| 24 | 80034024000 LOCKING LEVER CPL. 03 |
349 Kč | |
| 25 | 80034024050 SPECIAL SCREW M 6X25 |
69 Kč | |
| 26 | 0025060106 HH COLLAR SCREW M6X10 TX30 |
28 Kč | |
| 27 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 |
17 Kč | |
| 28 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 31 | 80034031000 SHIFTING LEVER CPL. 03 |
2 473 Kč | |
| 32 | 54634032100 SHIFTING LEVER SPRING 250 |
52 Kč | |
| 33 | 54634131000 STEP PLATE FOR SHIFT LEVER 250 |
494 Kč | |
| 34 | 54634031050 BOLT 6X25 FOR SHIFT LEVER |
86 Kč | |
| 40 | 0625068060 DEEP GROOVE BALL BEARING 6806 C3 |
490 Kč | |
| 42 | 0760122270 SHAFT SEAL RING 12 X 22 X 7 B |
55 Kč | |
| 45 | 80034012050 CIRCLIP SW30X1,5 |
31 Kč | |
| 47 | 0481030220 TENSION PIN DIN1481 3X22 |
5 Kč | |
| 52 | 80034052000 SLEEVE FOR LOCKING LEVER 03 |
Na dotaz | 1 |
