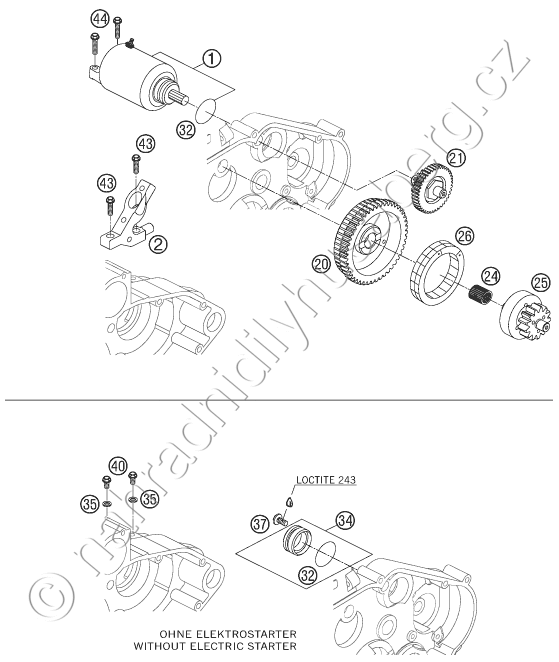

Díly pro ELECTRIC STARTER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 80040001000 E-STARTER ENGINE CPL. 03 |
9 481 Kč | |
| 2 | 81040002000 BRACKET ELEC. STARTER ENG. 04 |
Na dotaz | 1 |
| 20 | 80040020000 FREE WHEEL GEAR 03 |
2 160 Kč | |
| 21 | 80040021100 GEAR WHEEL TORQUE LIMITER 04 |
4 988 Kč | |
| 24 | 0405101310 NEEDLE BEARING K 10X13X10 02 |
118 Kč | |
| 25 | 80040025000 FREE WHEEL HUB 03 |
2 160 Kč | |
| 26 | 79240026000 FREEWHEEL |
1 934 Kč | |
| 32 | 0770242030 O-RING 24,20X3,00 NBR70 |
18 Kč | |
| 34 | 80040034100 PLUG ELECTRIC STARTER 04 |
451 Kč | |
| 35 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 37 | 0024060106 HH COLLAR SCREW M6X10 TX30 |
29 Kč | |
| 40 | 0025060106 HH COLLAR SCREW M6X10 TX30 |
28 Kč | |
| 43 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 44 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč |
