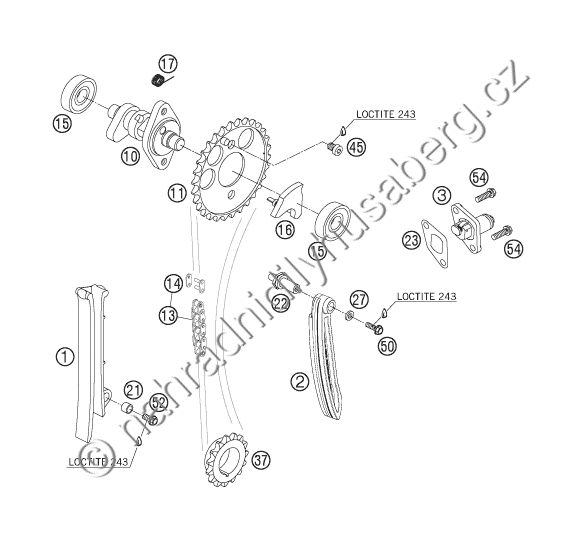

Díly pro TIMING DRIVE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 80036001000 TIMING CHAIN GUIDE 04 |
119 Kč | |
| 2 | 82036002000 TENSIONER 650 05 |
98 Kč | |
| 3 | 59036003000 TIMINGCHAIN TENSIONER CPL.RAC. |
972 Kč | |
| 10 | 82036010000 CAMSHAFT 650 04 |
4 264 Kč | |
| 11 | 80036011100 CAMSHAFT GEAR 05 |
1 791 Kč | |
| 13 | 82036013100 TIMING CHAIN G67BW 70L DID 05 |
717 Kč | |
| 14 | 80036013150 LINK FOR TIMING CHAIN DID 05 |
111 Kč | |
| 15 | 0625062014 BALL BEARING 6201 |
231 Kč | |
| 16 | 59036016000 AUTO DECOMPRESSION SHAFT |
708 Kč | |
| 17 | 59036017000 SPRING FOR AUTODECOMPRESSION |
66 Kč | |
| 21 | 80036001050 SPACER BUSHING TIM.CH.GUIDE 04 |
71 Kč | |
| 22 | 80036002050 STEPPED SPACER BUSHING 04 |
217 Kč | |
| 23 | 59036003050 GASKET TIMING CHAIN TENSIONER |
84 Kč | |
| 27 | 59036060010 SHIM ALU 5,2X10X2 |
21 Kč | |
| 37 | 80036037000 TIMING CHAIN GEAR 03 |
972 Kč | |
| 45 | 0984080103 AH SCREW DIN7984-M 8X10 |
23 Kč | |
| 50 | 0015050163 HH COLLAR SCREW M 5X16 WS=8 |
17 Kč | |
| 52 | 0015060123 HH COLLAR SCREW M 6X12 WS=8 |
17 Kč | |
| 54 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 |
17 Kč |
