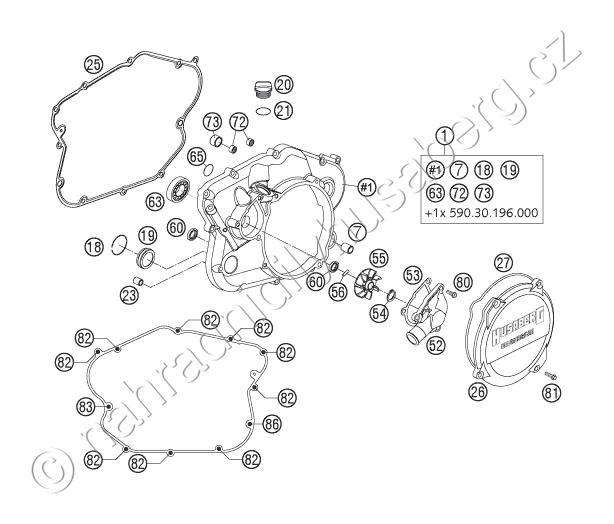

Díly pro CLUTCH COVER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 80030001044 CLUTCH COVER CPL. 04 |
6 606 Kč | |
| 7 | 80034007053 SLIDING SLEEVE PLASTIC-COAT 03 |
135 Kč | |
| 18 | 61030019050 CIRCLIP OIL LEVEL GLASS 03 |
29 Kč | |
| 19 | 59030019200 OIL SIGHT GLASS |
318 Kč | |
| 20 | 79430020033 OIL FILLER CAP M24X3 WITH O-R |
89 Kč | |
| 21 | 0770191015 O-RING 19,00X3,00 NBR |
15 Kč | |
| 23 | 59030023000 DOWEL SLEEVE 6X8X11.5 |
82 Kč | |
| 25 | 80030025000 GASKET CLUTCH COVER 03 |
498 Kč | |
| 26 | 80030026000 OUTER CLUTCH COVER 03 |
1 307 Kč | |
| 27 | 80030027100 GASKET OUTER CLUTCH COVER 05 |
255 Kč | |
| 52 | 80035052000 WATER PUMP COVER 03 |
853 Kč | |
| 53 | 80035053000 GASKET WATER PUMP COVER 03 |
58 Kč | |
| 54 | 0471100010 CIRCLIP DIN0471-10X1 |
14 Kč | |
| 55 | 80035055000 WATER PUMP GEAR 03 |
320 Kč | |
| 56 | 0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8 |
20 Kč | |
| 60 | 0760101844 SHAFT SEAL RING 10X18X4 BSL V. |
135 Kč | |
| 63 | 0625062013 BALL BEARING SPEC.B.B.SKF 6201 |
567 Kč | |
| 65 | 0770173024 O-RING 17,30X2,40 NBR 70 SH |
17 Kč | |
| 72 | 0618081210 NEEDLE BUSH HK 0810 DIN 618 |
71 Kč | |
| 73 | 80040025050 BUSHING 12X15X9,7 |
135 Kč | |
| 80 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 |
17 Kč | |
| 81 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 82 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 83 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 86 | 0025060456 HH COLLAR SCREW M6X45 TX30 |
29 Kč |
