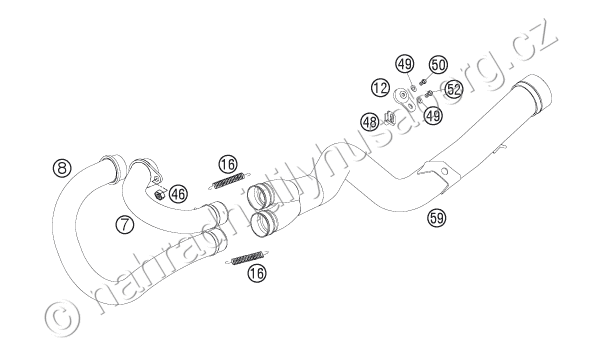

Díly pro EXHAUST SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 2 | 80005079400 SILENCER FE CPL. THROTT. 05 |
7 672 Kč | |
| 7 | 81505007100 EXH. COLLECTOR L/S 550 CPL. 05 |
1 974 Kč | |
| 8 | 81505008100 EXH. COLLECTOR R/S 550 CPL. 05 |
Na dotaz | 1 |
| 12 | 50305012000 SWINGELEMENT FOR EXHAUST PIPE |
257 Kč | |
| 12 | 80005079250 SILENCER HOUSING FE 05 |
Na dotaz | 1 |
| 14 | 59405269000 BUSHING SIL.-SMR FRONT 2004 |
135 Kč | |
| 15 | 80005079109 SIL. CONNECT. CAP FC CPL. 05 |
Na dotaz | 1 |
| 16 | 50305016000 TEN.SPRING L=62MM EY.MOVEABLE |
98 Kč | |
| 18 | 77205068000 DAMP. COMPON. BLACK |
69 Kč | |
| 19 | 77205169000 BUSHING 7.5x12x28x8.3 11 |
82 Kč | |
| 20 | 0770740015 O-RING 74,00X1,50 FKM 75SH |
58 Kč | |
| 22 | 80005079206 SIL. END CAP FE CPL. 05 |
1 729 Kč | |
| 22 | 80005079406 SIL. END CAP FE CPL. THROTT.05 |
1 907 Kč | |
| 32 | 77005078400 STUFFING YARN 400G |
1 703 Kč | |
| 33 | 59005078076 STUFFING YARN 560X340X76G 04 |
1 346 Kč | |
| 36 | 0011480800 DUMMY RIVET 4,8X 8 NIRO |
39 Kč | |
| 37 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K |
20 Kč | |
| 38 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 40 | 0137060003 SPRING WASHER DIN 137 B - 6 |
17 Kč | |
| 44 | 56509064100 SELF LOCKING NUT M6 10.9 |
21 Kč | |
| 46 | 51010086000 SELF LOCKING NUT M 6 COPPER |
28 Kč | |
| 48 | 54603048100 CLIP NUT M6 |
87 Kč | |
| 49 | 0125060003 WASHER DIN0125-A 6,4 |
13 Kč | |
| 50 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 |
17 Kč | |
| 52 | 0015060123 HH COLLAR SCREW M 6X12 WS=8 |
17 Kč | |
| 59 | 80005059000 EXH.INT. TUBE CPL. HUSABERG 05 |
5 450 Kč |
