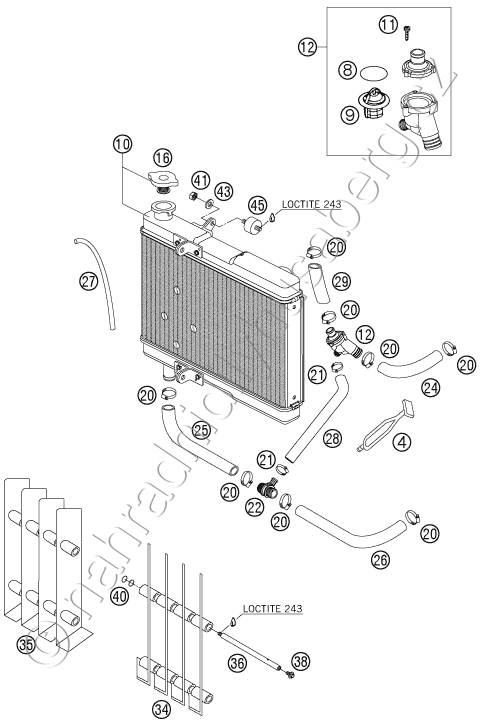

Díly pro COOLING SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 4 | 50303018000 RUBBER L=145MM |
98 Kč | |
| 8 | 0770320020 O-RING 32,00X2,00 |
44 Kč | |
| 9 | 59435017000 THERMOSTAT 70 DEGREE 04 |
655 Kč | |
| 10 | 80035010100 RADIATOR \'\'45493B\'\' 2006 |
14 343 Kč | |
| 11 | 0016040183 SCREW FOR PLASTIC D=4X18 |
17 Kč | |
| 12 | 80035013044 THERMOSTAT CPL. 2005 |
1 205 Kč | |
| 16 | 58035016000 RADIATOR CAP SMALL 20,3 PSI |
366 Kč | |
| 20 | 10001020300 HOSE CLAMP 18-29 |
52 Kč | |
| 21 | 58335099000 HOSE CLAMP GEMI 10-16 |
57 Kč | |
| 22 | 54835018000 T-CONNECTOR 23/23/12,5 |
312 Kč | |
| 24 | 81035024000 HOSE CYLINDER-THERMOST. 450 05 |
180 Kč | |
| 25 | 80035027002 HOSE 2 THERMOSTAT 05 |
280 Kč | |
| 26 | 80035027001 HOSE 1 THERMOSTAT 05 |
214 Kč | |
| 27 | 50335030001 PVC-HOSE 6X9 |
92 Kč | |
| 28 | 80035027003 HOSE 3 THERMOSTAT 05 |
251 Kč | |
| 29 | 80035026000 HOSE THERMOSTAT- RADIATOR 05 |
135 Kč | |
| 34 | 8003503400080 RADIATOR GUARD L/S YELLOW 04 |
190 Kč | |
| 35 | 8003503500080 RADIATOR GUARD R/S YELLOW 04 |
190 Kč | |
| 36 | 80035036000 BOLT FOR RADIAT. PROTECTOR 04 |
Na dotaz | 4 |
| 38 | 0024060106 HH COLLAR SCREW M6X10 TX30 |
29 Kč | |
| 40 | 0770010015 O-RING 10,00X1,50 NBR 70 SH |
50 Kč | |
| 41 | 0985060003 SELF LOCK. NUT DIN0985-M 6 |
20 Kč | |
| 43 | 0021060003 WASHER DIN9021-A 6,4 |
17 Kč | |
| 45 | 80035005000 VIBRAT. DAMP. 25X15M6X10/15 04 |
143 Kč |
