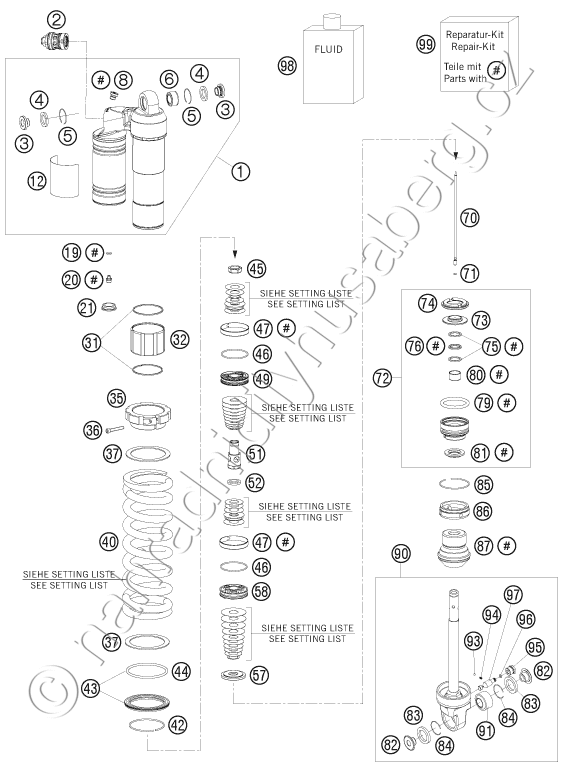

Díly pro SHOCK ABSORBER DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50180357S4 MONOSHOCK TOP PART CPL. FE 07 |
11 719 Kč | |
| 2 | 50180213S6 DCC-COMPR.DAMP.CONTROL CPL. 04 |
4 999 Kč | |
| 3 | 46180061 ADAPTOR-BUSH 12X26 |
198 Kč | |
| 4 | 46180003 OIL SEAL KGW D=25 |
55 Kč | |
| 5 | 50180168 Locking ring KGW Ă 25 |
44 Kč | |
| 6 | 50180005 BUSHING KGW 1525 HD |
885 Kč | |
| 8 | 50180095 BLEED PLUG R 1/8 |
95 Kč | |
| 12 | 52000085 WP CAUTION (PDS KTM) |
204 Kč | |
| 19 | 46810893 O-RING NBR 5,28X1,78 |
29 Kč | |
| 20 | 36120151S PLUG SCREW M5X6 CPL. |
161 Kč | |
| 21 | 46811208 RUBBER CAP \'\'DO NOT OPEN\'\' |
57 Kč | |
| 31 | 50180133 CIRCLIP 50X1,5 |
89 Kč | |
| 32 | 50180081 SPRING GUIDANCE L=40 |
145 Kč | |
| 35 | 50180433 SPRING RETAINER M56X1 |
1 195 Kč | |
| 36 | 50180327 AH SCREW M5X30 DIN912 |
33 Kč | |
| 37 | 50180114 SPACER RING FOR SPRING |
66 Kč | |
| 40 | 91210056S SPRING 250 80N/MM YELLOW |
3 382 Kč | |
| 40 | 91210057S SPRING 250 84N/MM YELLOW |
3 382 Kč | |
| 40 | 91210058S SPRING 250 88N/MM YELLOW |
3 382 Kč | |
| 42 | 50180273 CIRCLIP 58,2X2 |
47 Kč | |
| 43 | 50180463S SPRING RET. D=80 W. O-RING 05 |
1 120 Kč | |
| 44 | 50180352 O-RING VITON 66,27X3,53 |
183 Kč | |
| 45 | 50180141 PISTON ROD NUT M16X1 |
360 Kč | |
| 46 | 50180099 O-RING VITON 44,17X1,78 |
41 Kč | |
| 47 | 50180135 PISTON RING 50-8 |
284 Kč | |
| 49 | 50180446 PISTON 6+6X3,5/4,5 |
2 199 Kč | |
| 51 | 50180510 HOLDER D=16 M16X1 L=44 |
1 075 Kč | |
| 52 | 50180578 SHIM D23XD16X2 |
326 Kč | |
| 57 | 50180233 REBOUND DISC D=34, H=2 |
853 Kč | |
| 58 | 50180197 PISTON 6+6X7/4,5 |
2 160 Kč | |
| 70 | 50180490 NEEDLE L=169 |
163 Kč | |
| 71 | 46811265 O-RING VITON 2,2X1,6 |
36 Kč | |
| 72 | 50180435S1 ADAPTOR D50 H29 CPL. |
2 684 Kč | |
| 73 | 50180113 STEEL DISC 18X,5X43,7X6 |
300 Kč | |
| 74 | 50180107 REBOUND RUBBER |
308 Kč | |
| 75 | 50180102 BACKUPRING 22,55X1,5 |
95 Kč | |
| 76 | 50180101 QUAD RING 18X2,62 |
219 Kč | |
| 79 | 50180103 O-RING 41X5 |
41 Kč | |
| 80 | 46180119 DU-BUSH 18X20X12 |
95 Kč | |
| 81 | 50180082 DUST SEAL 1835 |
384 Kč | |
| 82 | 50180153 ADAPTOR-BUSH KGW 32X10X26 |
312 Kč | |
| 83 | 50180159 SHAFT SEAL RING KGW D=32 |
126 Kč | |
| 84 | 50180175 CIRCLIP KGW D=32 |
102 Kč | |
| 85 | 50180126 CIRCLIP 53X1,75 |
31 Kč | |
| 86 | 50180487 COVER D=50 |
645 Kč | |
| 87 | 50180480 BUMP RUBBER D58 D17 H59 SXS 05 |
1 120 Kč | |
| 90 | 50180497S1 MONOSHOCK LOWER PART CPL. 07 |
8 706 Kč | |
| 91 | 50180179 PIVOT BEARING KGW 1632 |
1 129 Kč | |
| 93 | 40540603 STEEL BALL D=3MM |
29 Kč | |
| 94 | 48600028 SPRING D=2,9 L=7,9 |
36 Kč | |
| 95 | 50180281 RESERVOIR CAP M14X1 |
318 Kč | |
| 96 | 50180222 O-RING NBR 4X1,5 |
29 Kč | |
| 97 | 50180434S ADJUSTING SCREW REBOUND TRAVEL |
607 Kč | |
| 98 | 50180751S1 SHOCK ABSORBER FLUID 5 LT |
2 803 Kč | |
| 99 | R12011 REPAIR KIT GASKET 5018 PDS 06 |
2 819 Kč |
