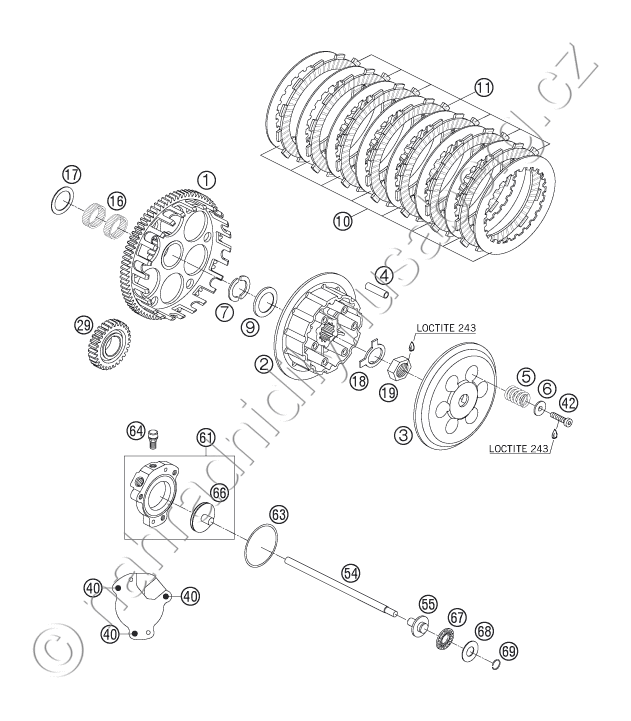

Díly pro CLUTCH
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 80032000078 OUTER CLUTCH HUB 03 |
7 767 Kč | |
| 2 | 59032002500 INNER HUB - RACING 2007 |
2 009 Kč | |
| 3 | 59032003500 PRESSURE CAP WITH OIL BORE 07 |
1 682 Kč | |
| 4 | 59032004000 DRIVING SLEEVE D=8,L=31 2002 |
55 Kč | |
| 5 | 59032005000 CLUTCH SPRING 2,5X43MM |
57 Kč | |
| 6 | 59032006050 SPRING RETAINER 6,2X12X18X5,2 |
36 Kč | |
| 7 | 59032007000 HALF-WASHER 03 |
49 Kč | |
| 9 | 59032009000 STEPPED WASHER 03 |
126 Kč | |
| 10 | 59032010100 INTERMEDIATE DISC 1MM 2002 |
146 Kč | |
| 11 | 59032011100 LINING DISC 2MM 04 |
372 Kč | |
| 16 | 0405252910 NEEDLE BEAR K 25X29X10 |
134 Kč | |
| 17 | 59032017000 SUPPORTWASHER 25X35X1 |
49 Kč | |
| 18 | 56532018000 LOCK WASHER |
57 Kč | |
| 19 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. |
102 Kč | |
| 29 | 80032000029 PRIMARY GEAR 29-T 03 |
Na dotaz | 1 |
| 40 | 0912050163 AH SCREW DIN0912-M 5X16 |
17 Kč | |
| 42 | 0984060252 AH SCREW DIN6912 M6X25 |
23 Kč | |
| 54 | 80032054000 PUSH ROD 03 |
211 Kč | |
| 55 | 50332054051 PRESSURE PIECE 125-380 \'98 |
Na dotaz | 1 |
| 61 | 80032061044 OUTPUT CYLINDER CPL. 2004 |
4 086 Kč | |
| 63 | 0770045015 O-RING 45,00X1,50 NBR 70 |
58 Kč | |
| 64 | 54732064000 BLEEDER SCREW WITH CAP |
512 Kč | |
| 66 | 80032066000 PISTON + O-RING 2004 |
1 163 Kč | |
| 67 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 |
150 Kč | |
| 68 | 54637098200 AXIAL WASHER AS1226 12X26X1 |
57 Kč | |
| 69 | 0993012000 CIRCLIP DIN7993-RW12 |
5 Kč |
