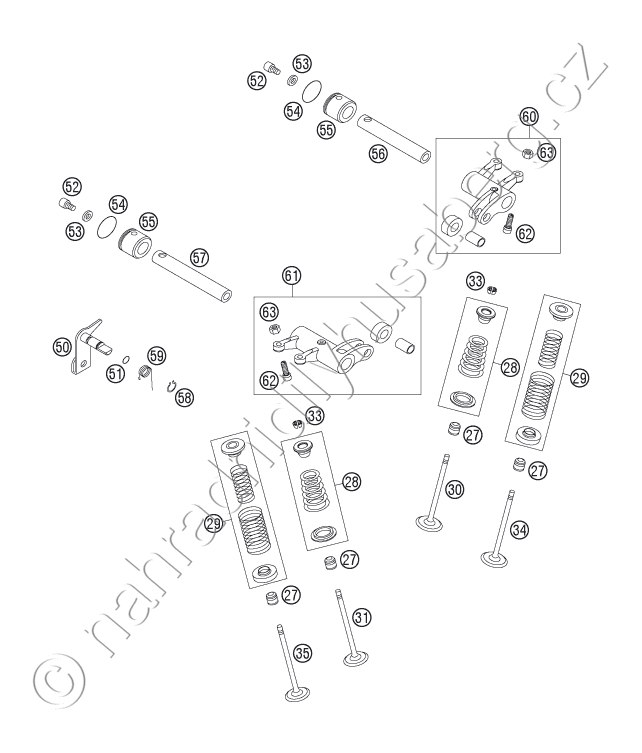

Díly pro VALVE DRIVE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 27 | 59036027000 VALVE-STEM SEALING RACING |
89 Kč | |
| 28 | 59436028044 VALVE SPRING CONICAL CPL. 03 |
754 Kč | |
| 29 | 80036028044 VALVE SPRING KIT CPL. 05 |
2 243 Kč | |
| 30 | 59036030000 INTAKE VALVE D=35MM |
1 280 Kč | |
| 31 | 59036031000 EXHAUST VALVE D=30MM |
1 386 Kč | |
| 33 | 59036033000 VALVE COLLET KK 6 H |
28 Kč | |
| 34 | 59436030000 INTAKE VALVE D=35MM TITAN 03 |
3 060 Kč | |
| 35 | 59436031000 EXHAUST VALVE D=30MM TITAN 03 |
3 060 Kč | |
| 50 | 59036050000 DECOMPRESSION SHAFT CPL. |
738 Kč | |
| 51 | 0770051016 O-RING 5,10X1,60 NBR 70 |
18 Kč | |
| 52 | 0912050083 SHCS DIN 912 M5X8 |
17 Kč | |
| 53 | 59036060010 SHIM ALU 5,2X10X2 |
21 Kč | |
| 54 | 0770191016 O-RING 19,10X1,60 NBR 70 |
5 Kč | |
| 55 | 59036061095 END CAP ROCKER ARM SHAFT |
288 Kč | |
| 56 | 59036056000 ROCKER ARM SHAFT INTAKE |
371 Kč | |
| 57 | 59036057000 ROCKER ARM SHAFT EXHAUST |
278 Kč | |
| 58 | 0471080000 CIRCLIP DIN0471- 8X0,8 |
5 Kč | |
| 59 | 59036059000 DECOMPRESSION LEVER SPRING |
50 Kč | |
| 60 | 59036060144 ROCKER ARM INTAKE CPL. |
3 683 Kč | |
| 61 | 59036061144 ROCKER ARM EXHAUST CPL. |
4 090 Kč | |
| 62 | 59036062000 ADJUSTMENT SCREW M6X0,75 |
422 Kč | |
| 63 | 59036062100 NUT M6X0,75 |
47 Kč |
