SULKAR - Oficiální zastoupení Husaberg

Díly pro REAR BRAKE CONTROL

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 50313060100
FOOTBRAKECYL. 13MM NATURE 2001
2 207 Kč
10 54513150000
REPAIR KIT PISTON 13MM
703 Kč
11 50311051100
BRAKE LIGHT SWITCH REAR \'98
413 Kč
12 50213025000
HOLLOW SCREW M10X1X19
68 Kč
13 42013226000
CU-SEAL RING DIN7603-10X16X1
28 Kč
20 80004060050
BUSHING 6,2X10X2,5MM 04
50 Kč
26 58007016101
HOSE FOR RESERVOIR 6X1,5
270 Kč
27 58007017000
YDNAC CLAMP 10101 (10,4MM)
21 Kč
30 54513030044
BRAKE FLUID RESERVOIR \'89
272 Kč
35 0024060106
HH COLLAR SCREW M6X10 TX30
29 Kč
37 0014060203
HH COLLAR SCREW M 6X20 WS=8
21 Kč
40 0991060253
FLAT HEAD SCREW DIN7991-M 6X25
28 Kč
42 0991080453
FLAT HEAD SCREW DIN7991-M 8X45
49 Kč
48 80013048000
ECCENTRIC BRAKE LEVER STOP 04
456 Kč
49 0797060003
TOOTH LOCK WASH. DIN6797-A 6,4
5 Kč
50 80013050044
REAR BRAKE LEVER CPL. 04
2 349 Kč
51 80013051000
BRAKE LEVER PEDAL 04
260 Kč
52 80013052000
RETAIN.SPRING REAR BR.LEVER 04
113 Kč
53 80013053100
COLLAR. BUSH.8,2X13X24X5,5 05
73 Kč
54 80013054100
DISTANCE SPACER 8,2X16X3 MM 05
63 Kč
55 80013055000
FORK PART REAR BRAKE CONTR. 04
118 Kč
56 80013056000
PRESSURE ROD REAR BRAKE CON.04
108 Kč
57 80013057000
MOUNTING BOLT 04
65 Kč
58 80013058000
SPECIAL WASHER 04
69 Kč
59 80013059000
SL-CIRCLIP 6 MBO 08
31 Kč
60 0625006087
GROOVED BALL BEAR. 608 2RS C3
244 Kč
62 0137080003
SPRING WASHER DIN137 B8
4 Kč
66 0660050167
RIVET DIN0660- 5,0X16
17 Kč
70 0934060003
HEX NUT DIN 934 M6
17 Kč
72 54310086200
SELF LOCKING NUT M8 10.9
21 Kč

Další schémata

ACCESSORIES ACCESSORIES AIR FILTER AIR FILTER DECAL DECAL EXHAUST SYSTEM EXHAUST SYSTEM FRAME FRAME FRONT BRAKE CALIPER FRONT BRAKE CALIPER FRONT BRAKE CONTROL FRONT BRAKE CONTROL FRONT FORK DISASSEMBLED FRONT FORK DISASSEMBLED FRONT FORK, TRIPLE CLAMP FRONT FORK, TRIPLE CLAMP FRONT WHEEL FRONT WHEEL HANDLEBAR, CONTROLS HANDLEBAR, CONTROLS INSTRUMENTS / LOCK SYSTEM INSTRUMENTS / LOCK SYSTEM LIGHTING SYSTEM LIGHTING SYSTEM MASK, FENDERS MASK, FENDERS NEW PARTS NEW PARTS REAR BRAKE CONTROL REAR BRAKE CONTROL REAR WHEEL REAR WHEEL SHOCK ABSORBER SHOCK ABSORBER SHOCK ABSORBER DISASSEMBLED SHOCK ABSORBER DISASSEMBLED SIDE / CENTER STAND SIDE / CENTER STAND SWING ARM SWING ARM TANK, SEAT, COVER TANK, SEAT, COVER WIRING HARNESS WIRING HARNESS

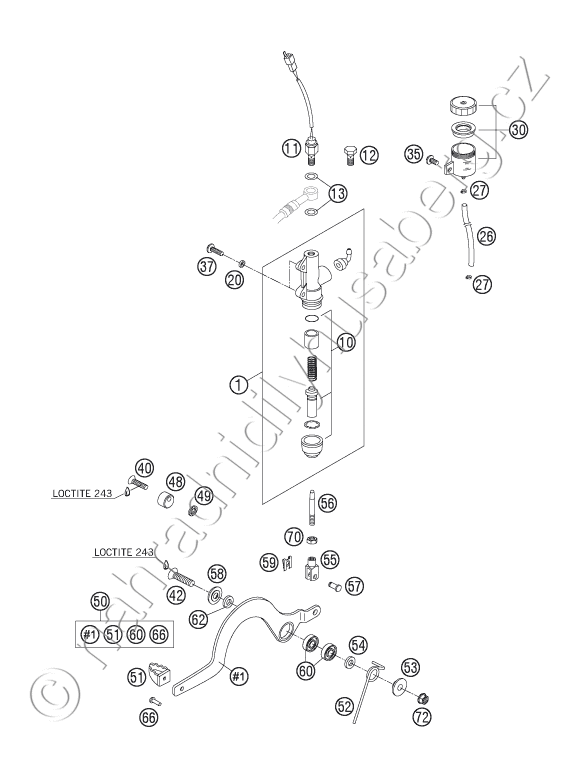

REAR BRAKE CONTROL

Zvětšit schéma REAR BRAKE CONTROL
REAR BRAKE CONTROL
