Díly pro CLUTCH

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 80032000078
OUTER CLUTCH HUB 03
7 767 Kč
2 59032002500
INNER HUB - RACING 2007
2 009 Kč
3 59032003200
PRESSURE CAP 04
1 278 Kč
4 59032004000
DRIVING SLEEVE D=8,L=31 2002
55 Kč
5 59032005000
CLUTCH SPRING 2,5X43MM
57 Kč
5 80032005000
CLUTCH SPRING 2,7X43MM
195 Kč
6 59032006000
SPRING RETAINER 6,2X12X18X3,6
58 Kč
7 59032007000
HALF-WASHER 03
49 Kč
9 59032009000
STEPPED WASHER 03
126 Kč
10 59032010100
INTERMEDIATE DISC 1MM 2002
146 Kč
11 59032011100
LINING DISC 2MM 04
372 Kč
16 0405252910
NEEDLE BEAR K 25X29X10
134 Kč
17 59032017000
SUPPORTWASHER 25X35X1
49 Kč
18 56532018000
LOCK WASHER
57 Kč
19 0936181505
HEXAGON NUT DIN0936-M18X1,5 R.
102 Kč
29 80032000029
PRIMARY GEAR 29-T 03
Na dotaz
1
40 0912050163
AH SCREW DIN0912-M 5X16
17 Kč
42 0984060252
AH SCREW DIN6912 M6X25
23 Kč
54 80032054000
PUSH ROD 03
211 Kč
55 50332054051
PRESSURE PIECE 125-380 \'98
Na dotaz
1
61 80032061044
OUTPUT CYLINDER CPL. 2004
4 086 Kč
63 0770045015
O-RING 45,00X1,50 NBR 70
58 Kč
64 54732064000
BLEEDER SCREW WITH CAP
512 Kč
66 80032066000
PISTON + O-RING 2004
1 163 Kč
67 54637097200
AXIAL NEEDLE BEARING AXK 1226
150 Kč
68 54637098200
AXIAL WASHER AS1226 12X26X1
57 Kč
69 0993012000
CIRCLIP DIN7993-RW12
5 Kč

Další schémata

BALANCER SHAFT BALANCER SHAFT BREATHER SYSTEM BREATHER SYSTEM CARBURETOR KEIHIN FCR-MX39/41 CARBURETOR KEIHIN FCR-MX39/41 CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER LINER CYLINDER LINER ELECTRIC STARTER ELECTRIC STARTER ENGINE CASE ENGINE CASE IGNITION SYSTEM IGNITION SYSTEM KICKSTARTER KICKSTARTER LUBRICATING SYSTEM LUBRICATING SYSTEM SHIFTING MECHANISM SHIFTING MECHANISM SPECIAL TOOLS SPECIAL TOOLS TIMING DRIVE TIMING DRIVE TRANSM. I MAIN SHAFT 4-G FC TRANSM. I MAIN SHAFT 4-G FC TRANSM. I MAIN SHAFT 6-G FE+FS TRANSM. I MAIN SHAFT 6-G FE+FS TRANSM. II COUNTERSHAFT 4/6-G TRANSM. II COUNTERSHAFT 4/6-G VALVE DRIVE VALVE DRIVE ZYLINDER HEAD ZYLINDER HEAD

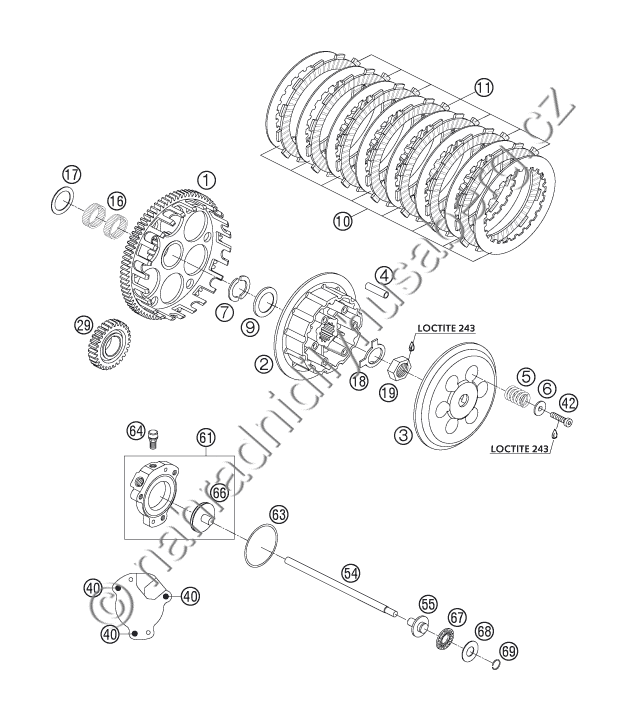

CLUTCH

Zvětšit schéma CLUTCH
CLUTCH
